CS-250V Professional 250 Watts Vocal Karaoke Speakers (Pair)

Mouseover image to zoom
Documents
User Manual
Hook Up Diagram
Panel Drawing
Installation
Brochure



Accessories
Parts & Accessories

Front View - Back View - Side View
Images/Slideshow

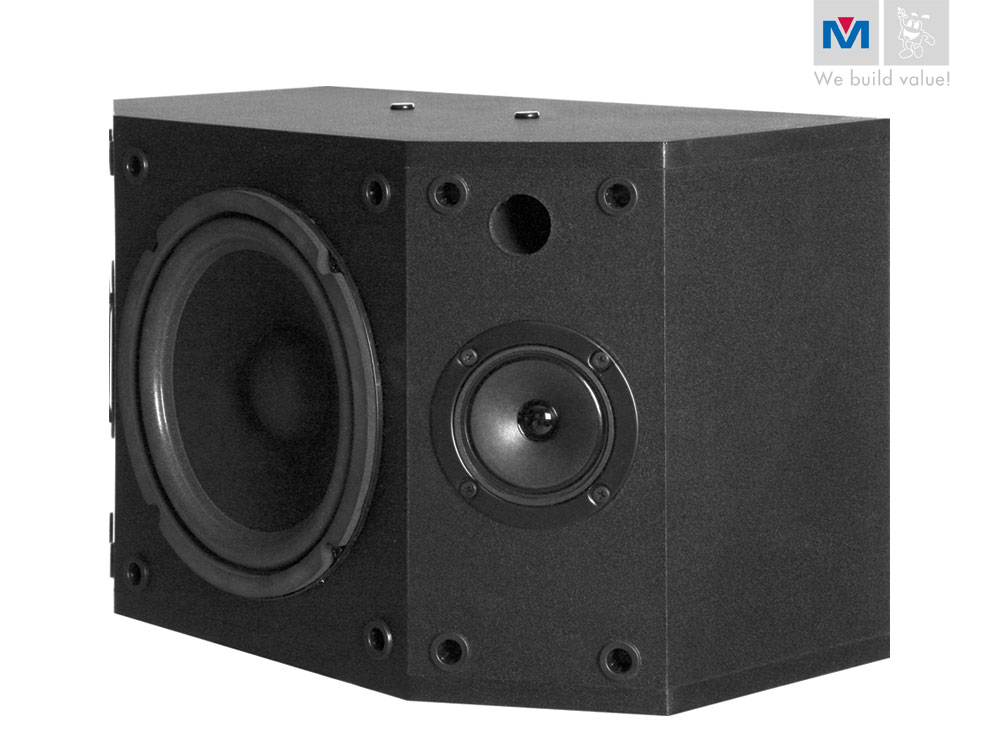

CS-250V from Better Music Builder is a compact design for karaoke speaker. The design was based on KTVs’ businesses with multiple speakers installed in their karaoke rooms. It is very light and smaller than most speakers but being able to produce high power for music and vocal sound. This is a great karaoke speaker especially good for small rooms where two pairs of speaker are installed to give a more dynamic field of karaoke sound environment.

Features:

Driver:
  • 8 inch woofer (1 full-range woofer)
  • 3 inch tweeter (2 tweeters)
  • Copper wired voice coil
  • Double magnet (woofer & tweeter)
Cabinet:
  • Color: Black
  • PVC layer, plywood
  • 2-way full-range design
  • Front Grill: adjustable 180 degrees
  • Woofer in middle, tweeters on left and right of woofer
  • Mountable screws (8mm Alan screw) top of cabinet (allow for wall/ceiling mounting)
  • Mountable screws (8mm Alan screw) bottom of cabinet (allow mounts on floor-stand)

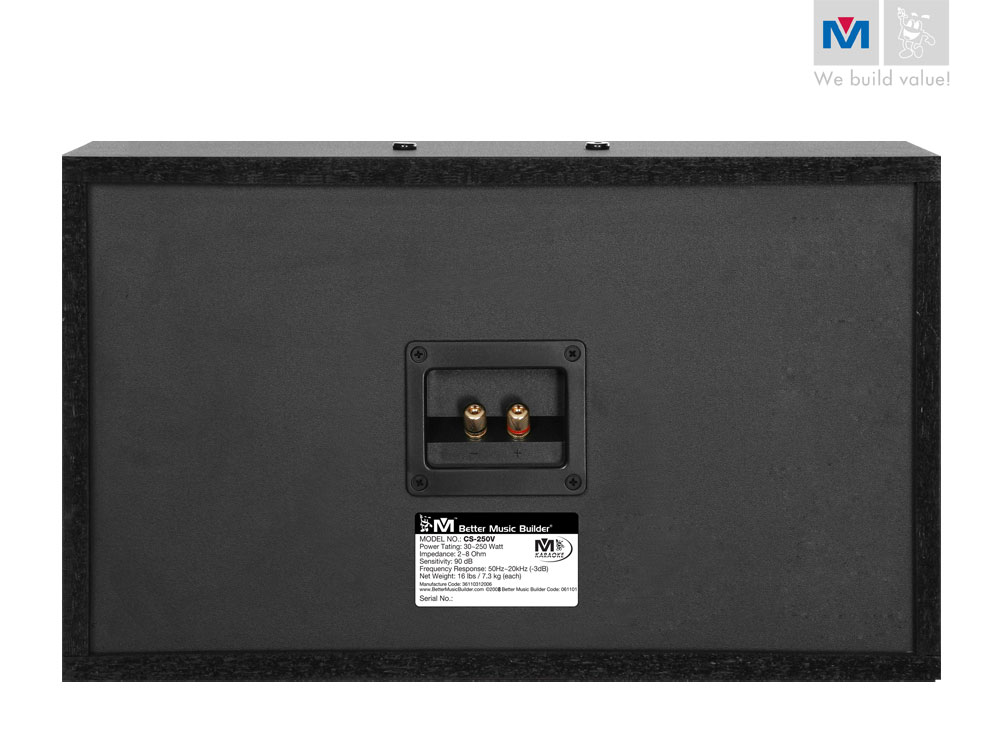

  • Wire inputs located on rear of cabinet (double banana type)
Specifications:
  • Recommended Usage: Main speaker (maximum 300 sq ft.)
  • Type: 2-Way full-range (floor-stand or wall/ceiling mounted)
  • Woofers: Single 8 inches
  • Tweeters: Dual 3 inches
  • Single Bass Reflex
  • Gold-Plated Brass Inputs (double MDP Banana Premium type)
  • Frequency Response: 40 Hz-20 kHz
  • Sensitivity: 89 db
  • Input Power Maximum: 250 Watts
  • Crossover Frequencies: 300 Hz
  • Nominal Impedance: 8 ohm
  • Unit Dimensions (W x H x D): 17.25 inches x 10.25 inches x 10 inches
  • Unit Weight: 16 lbs / 7.3 kg (each)
  • Package Dimensions (1 pair per box): 25 inches x 21 inches x 13.5 inches
  • Shipping Weight: 34 lbs / 15.4 kg

Details

Weight:40.00 lbs
MSRP: $299.00
