CS-610 Professional 450 Watts Karaoke Vocal Speakers
Mouseover image to zoom
Documents
User Manual
Hook Up Diagram
Panel Drawing
Installation
Brochure


Accessories
Parts & Accessories

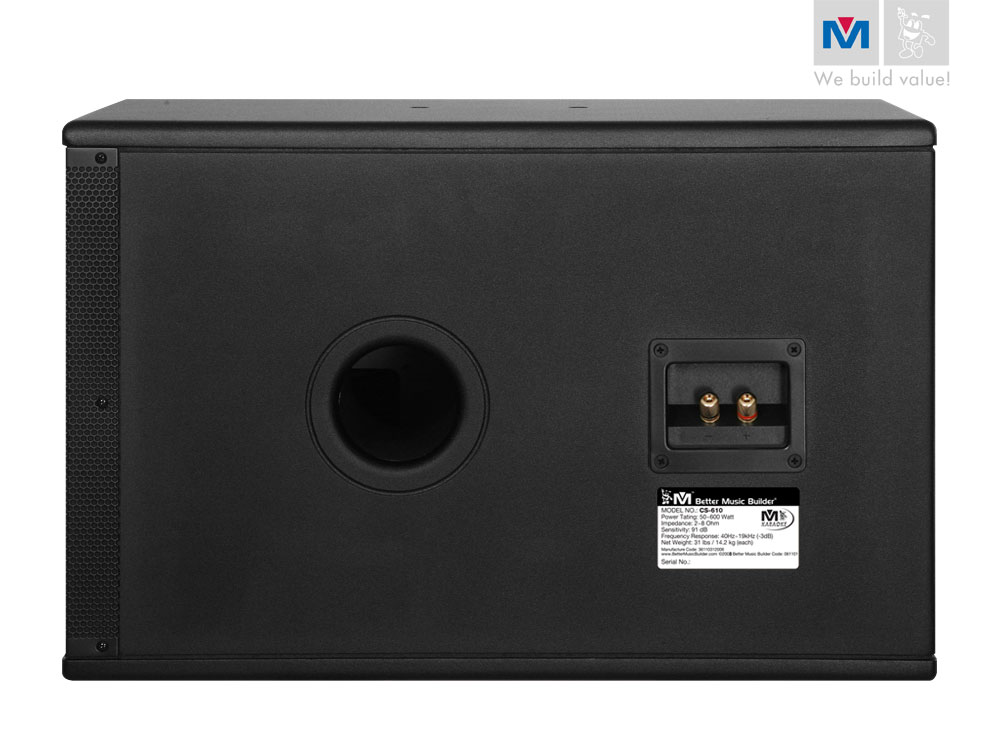

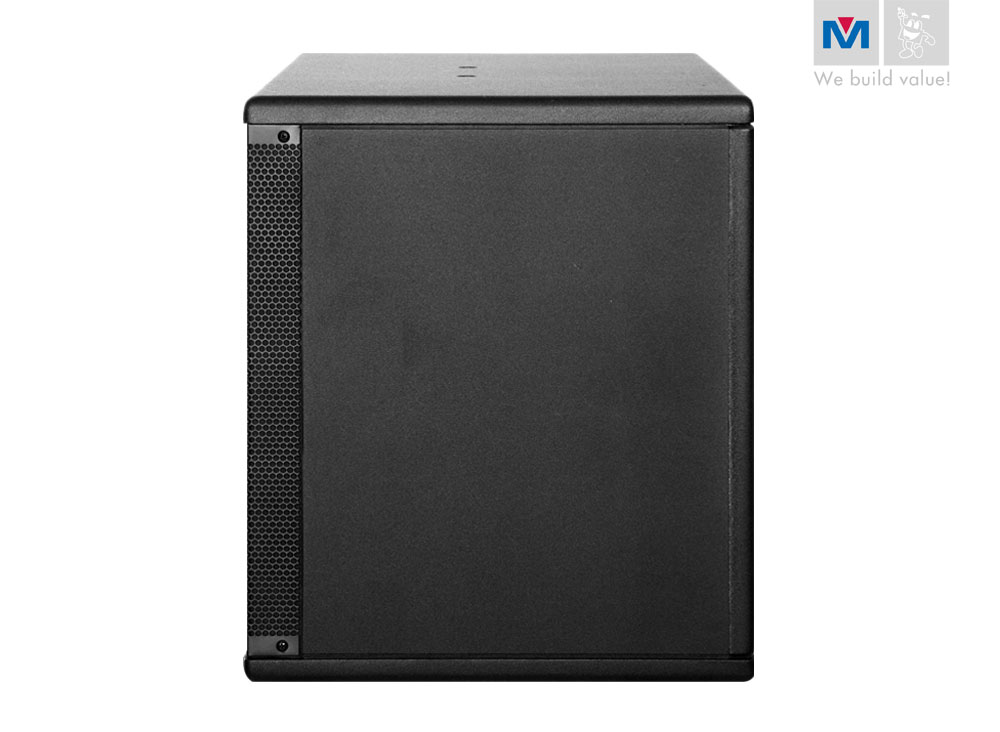

Front View - Back View - Side View
Images/Slideshow

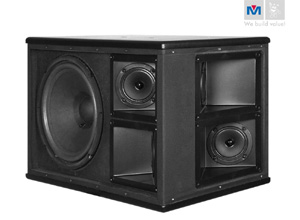

CS-610 is one of the latest speaker models from Better Music Builder. It has four built-in tweeters for great vocal clarity and a 10-inch woofer for great bass. The tweeters are set in different angles for range effect. This latest model offers better sound range, vocal clarity, and audio enhancements than most other speakers. It is a great universal speaker for musical instruments, operas, the classics, home-theater, and of course for Karaoke singing.

Features:

Driver:
  • 10 inch woofer (1 full-range woofer)
  • 3 inch tweeter (4 tweeters)
  • Copper wired voice coil
  • Double magnet (woofer & tweeter))
Cabinet:
  • Color:Black
  • PVC layer, MDF (medium density fiberboard)
  • 2-way full-range design
  • Woofer on right, 4 tweeters on left of woofer angled at front and corner
  • Mountable screws (8mm Alan screw) top of cabinet (allow for wall/ceiling mounting)
  • Mountable screws (8mm Alan screw) bottom of cabinet (allow mounts on floor-stand)
  • Wire inputs located on rear of cabinet (double banana type)
Specifications:
  • Recommended Usage: Main speaker (maximum 1000 sq ft.)
  • Type: 2-Way full-range (floor-stand or wall/ceiling mounted)
  • Woofers: Single 10 inches
  • Tweeters: Four 3 inches
  • Single Bass Reflex
  • Gold-Plated Brass Inputs (double MDP Banana Premium type)
  • Frequency Response: 50 Hz~ 20 kHz
  • Sensitivity: 90 db
  • Input Power Maximum: 450 Watts
  • Crossover Frequencies: 2 kHz
  • Nominal Impedance: 8 ohm
  • Unit Dimensions (W x H x D): 20.12 inches x 13.25 inches x 11.55 inches
  • Unit Weight: 31 lbs / 14.2 kg (each)
  • Package Dimensions (1 pair per box): 28 inches x 24 inches x 17 inches
    Shipping Weight: 68 lbs / 30.84 kg (pair per box)

Details

MSRP: $859.00
