CS-612s Professional 600 Watts Karaoke Vocal Speakers-Silver

Mouseover image to zoom
Documents
User Manual
Hook Up Diagram
Panel Drawing
Installation
Brochure



Accessories
Parts & Accessories

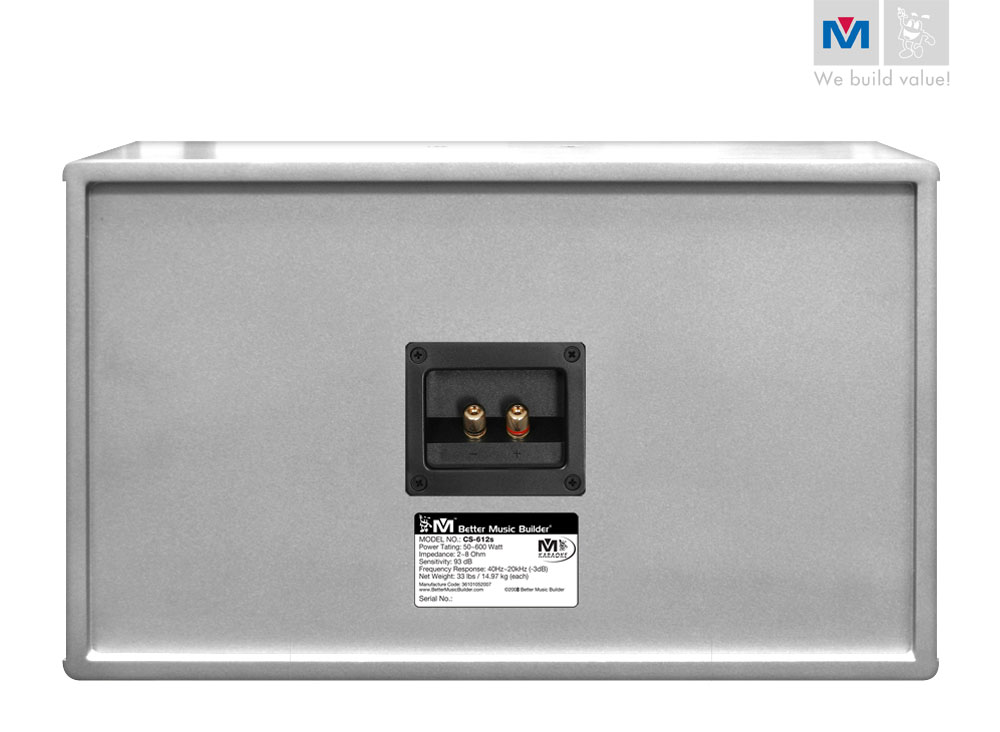

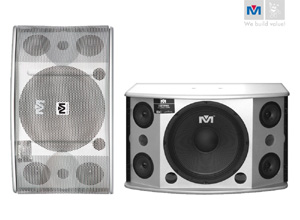

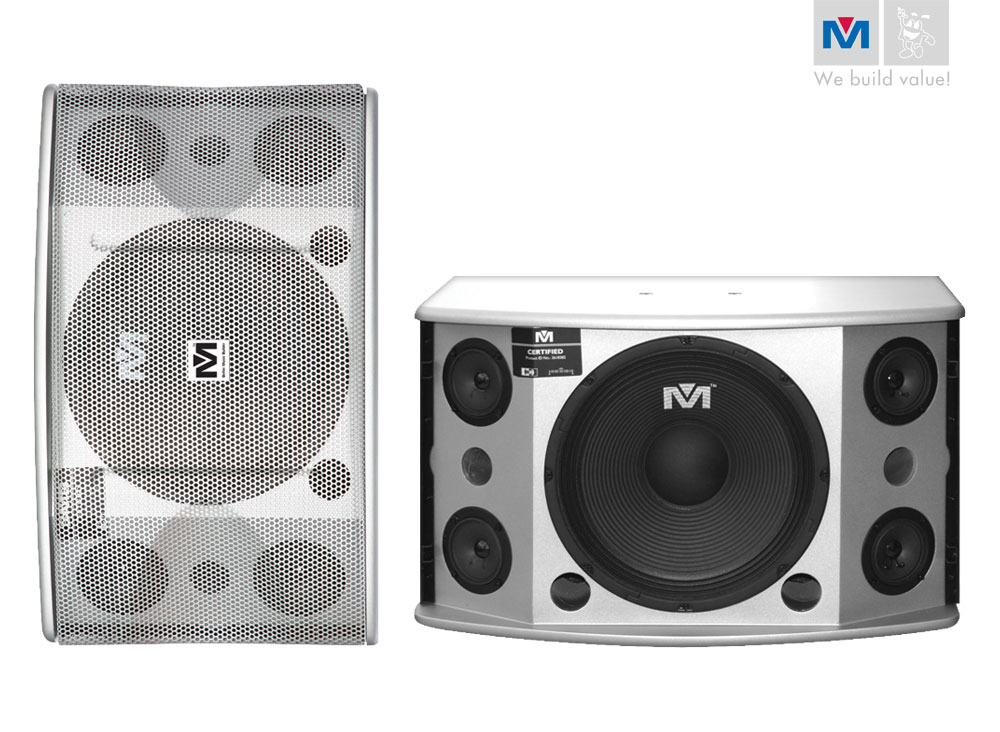

Front View - Back View
Images/Slideshow





CS-612s is one of the most innovative audio designs with a high-tech look in silver color, so it can apply with the futuristic designs. CS-612 is designed by the engineering team of Better Music Builder. Once you have installed the CS-612s at home or at your business, it will completely create an elegant atmosphere.

The CS-612s has power up to 600 watts at 8 ohms. It also has a 12-inch woofer drive and four tweeters. Therefore, it can make your vocal singing clearly with high performance. Now it is time for you to upgrade your Karaoke system with CS-612s.

Features:

Driver:
  • 12 inch woofer (1 full-range woofer)
  • 3 inch tweeter (4 tweeters)
  • Copper wired voice coil
  • Double magnet (tweeter)
  • Single magnet (woofer)
Cabinet:
  • Color: Silver
  • Silver PVC layer, MDF (medium density fiberboard)
  • 2-way full-range design
  • Front Grill: adjustable 180 degrees
  • Woofer on center, 2 tweeters on left and right of woofer
  • Mountable screws (8mm Alan screw) top of cabinet (allow for wall/ceiling mounting)
  • Mountable screws (8mm Alan screw) bottom of cabinet (allow mounts on floor-stand)
  • Wire inputs located on rear of cabinet (double banana type)
Specifications:
  • Recommended Usage: Main speaker (maximum 1500 sq ft.)
  • Type: 2-Way full-range (floor-stand or wall/ceiling mounted)
  • Woofers: Single 12 inches (aluminum alloy cone)
  • Tweeters: Four 3 inches
  • Single Bass Reflex
  • Gold-Plated Brass Inputs (double MDP Banana Premium type)
  • Frequency Response: 40 Hz~ 20 kHz
  • Sensitivity: 98 db
  • Input Power Maximum: 600 Watts
  • Crossover Frequencies: 300 Hz
  • Nominal Impedance: 8 ohm
  • Product Dimensions (W x H x D): 24 inches x 13.8 inches x 13 inches
  • Unit Dimensions (single unit per box): 18 inches x 27.5 inches x 16 inches
  • Unit Weight: 34.8 lbs / 15.8 kg (each)
  • Shipping Weight: 40 lbs / 17.6 kg (single unit per box)

Details

MSRP: $899.00
