DX-211/DX-2II Mixing Amplifier

Mouseover image to zoom
Documents
User Manual
Hook Up Diagram
Panel Drawing
Installation
Brochure



Accessories
Parts & Accessories

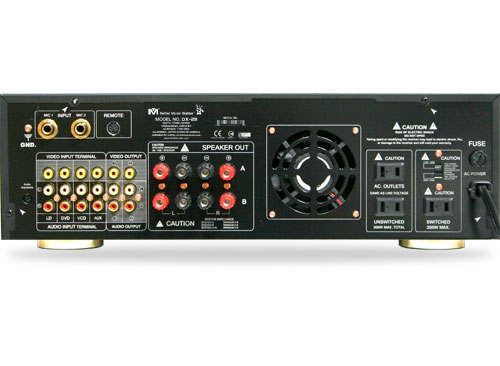

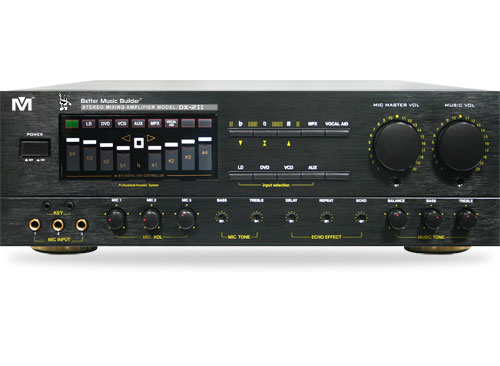

Front View - Back View


Images/Slideshow



The DX-2II (DX-211), was a breakthrough of Better Music Builder from the 1st generation of Better Music Builder, whether in quality or sales the DX-2II was a great success. It was and still is the one of the most reliable mixing amps for the karaoke systems. Now DX-2II is regarded as the traditional amplifier with traditional design with its 4 inputs and remote control, it is still one of the best selling of Better Music Builder.

Features

  • Max Rated Output: 120W + 120W (2 x Channels)
  • 4 Inputs Selector: 2 Video Inputs, 2 Audio Inputs 2 TV Monitor Output 5 Microphone Inputs (3 Fronts, 2 Back)
  • Master Music Volume Control
  • Master Microphone Volume Control
  • 2 Separate Remote Key Controller
  • Built-in Super Quiet Fan
  • REMOTE INPUT Jack for external remote control signal
  • 3 Microphone Inputs Full Functional Remote Control
  • Music Tone Control: Balance, Bass, Treble
  • Microphone Tone: Bass, Treble Controls
  • Digital Echo Control: Echo, Delay, Repeat

Specifications

  • Maximum Output: 240 Watts (60 Watts x 4 Channels)
  • Total Harmonic Distortion: 0.05%
  • Input Jacks (Sensitivity/Impedance): 4.5mV/3.5K Ohm
  • Mic Frequency Response: 40Hz to 15kHz, +8/-3dB
  • Music Frequency Response: 20Hz to 20KHz, +8/-3dB
  • Tone Control Characteristics: Music: Bass, Treble,
  • Microphone: Bass, Treble
  • Key Control Range: 9 steps, +2-1/2 tones
  • Supply Voltage: AC 110V-120V or 220V-240V, 50Hz/60Hz
  • Power Consumption: 600W AC Power outlets:
  • Dimensions: 496mmx250mmx454mm

Details

Weight:21.00 lbs
MSRP: $499.00
