DX-288 G2 using the latest CPU technology and expansive memory capacity to provide much more detailed options and features, which include personal microphone setup, 3 adjustable digital sound effects, the ability to lock on personal favorite settings, built-in microphone feedback destroyer and digital equalizer, and the built in circuit design capability to prevent the equipment from burning and breakage.

The G2 Series CPU DSP processor allows the independent effect adjustments of the main and center vocal monitor, bringing a new field of dynamic for Karaoke singing. DX-288 G2 5-D PRO Audio Technology enables the set up of two main and rear speakers Group A & Group B with an additional center vocal speaker for special effects including the microphone echo and reverb effect to be monitored by the center monitor speaker. The main music speaker also has the independent effect completely customized by the CPU. It can cover up to an area of 2,000 square feet for indoor functions.

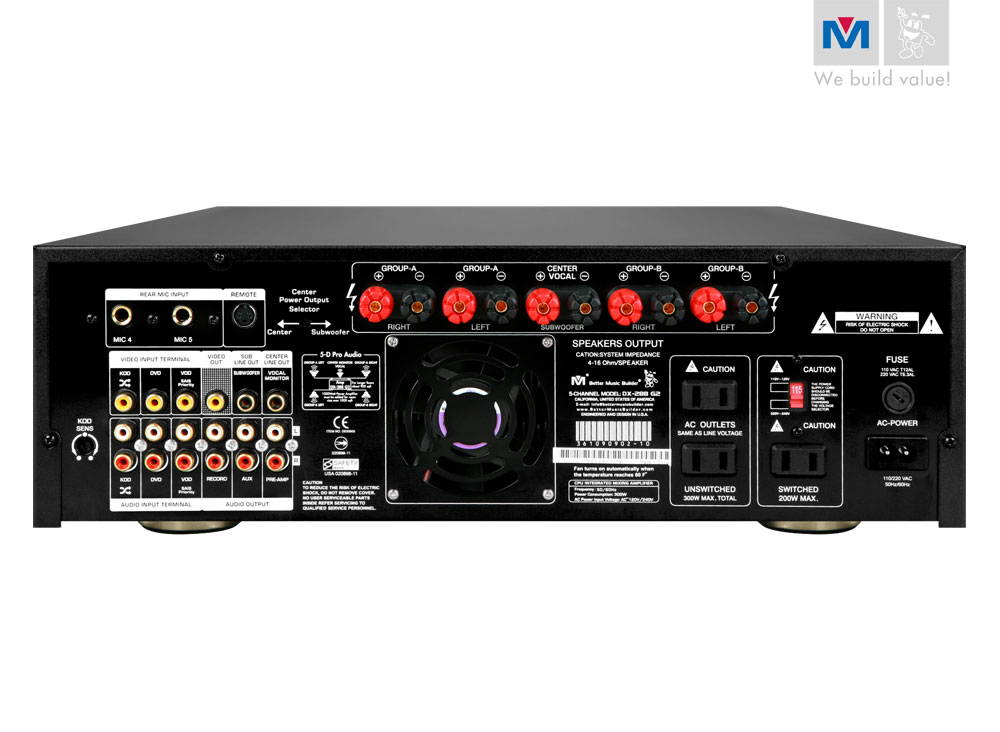

The center or subwoofer power output are switch able based on the 5 channels configuration of the user.

To resolve the problem with KTV having always needs to set the AV source into the amplifier manually. DX-288 G2 has the special feature called, Smart Auto Input Switching (SAIS), for commercial KTV use. With this special function, multiple input sources are connected to the system, then the system will scan for the availability of the set priority source (Main terminal) when SAIS is activated. This feature can be set manually or automatically. It can help the KTV clubs save the manpower and time in controlling the Karaoke system. This package comes with the special software suite that has the option to control the amplifier settings from the computer. It is truly an incredible unit for KTV or for the high end home Karaoke system.

DX-288 G2 introduces the latest Super Quiet 2-way "Tunnel" Fan technology to handle the intensive high-power output demand of the mixing amplifier to cool down the high output power and integrated CPU intensive system instead of the very basic and simple fan used by most amplifiers in the market which produces a lot of noise.

Features

• DSP (Digital Signal Processing) technology customized by Better Music Builder
• High-performance 24-bit dual-engine Feedback Destroyer
• 5-D PRO Audio 900Watt Max Power (available on DX-288 G2)
• Full computerized Smart Auto Input Switching (SAIS) feature for source input selection.
• Independently adjusted center speaker control for self vocal monitoring
• Music modulation with 9-step key control and preset effects for selection
• Full reverberation effects with Microphone reverb, echo, delay, and repeat adjustments
• 5 + 1 (powered-subwoofer) audio distributions selectable vocal center or bass
• Music "Mute" allows the microphone to be active while the music is off
• Dedicated 5 channels Power Output plus full array of Line Outputs which includes: record output, line output, pre-output, bass output, and center channel output
• Dedicated wireless microphone connection input in 2 groups. The volume of each group can be adjusted separately, with each group provides +/- 8dB adjustment for treble, median, and bass
• Independent Master and Microphone maximum volume locking
• Built-in Subwoofer and Center output stereo crossover with independently adjusted volume and cut-off frequency control from 20 Hz ~ 240 Hz
• Capable of driving two pairs of main speaker in different size to cover the whole frequency spectrum
• Three extra AC power outlets for additional equipment, programmable in both 110V and 220V

Specifications

• Source Input: KOD (Manual), DVD(BGM), VOD ( Main )
• Input Function: SAIS (Auto & Manually)
• Power Output: 900 Watts (8 Ohm) 5-Channel Output
• Microphone Input: 5 (Front x 3, Rear x 2)
• Video Inputs: 3 (RCA jacks)
• Video Outputs: 1 (RCA jacks)
• Audio Inputs: 3 (RCA jacks)
• Audio Outputs: 3 (RCA jacks)
• Music Input Section
• THD: <0.03%
• Input Sensitivity/Impedance: 200mV/10k Ohm
• Frequency Response: 20Hz~20kHz, ± 1 dB
• HF (increase/attenuate): ±8 dB
• LF (increase/attenuate): ±8 dB
• Key Control: 9 steps
• Mic. Input Section
• Input Sensitivity/Impedance: 20mV~40mV/2k Ohm
• Equalize
• Low: 100Hz ± 8 dB
• Middle: 1kHz ± 8 dB
• High: 10kHz ± 8 dB
• Standard Power: AC 120V/~60Hz (North America Market) / AC 220V/~50Hz (Asia or Europe Market)
• Power Consume: 30 Watts
• Dimensions (WxHxD): 17x3x13 (inches)
• Net Weight: 31.97 Lbs. / 14.5 Kg
• Shipping Weight: 34.17 Lbs. / 15.5 Kg
