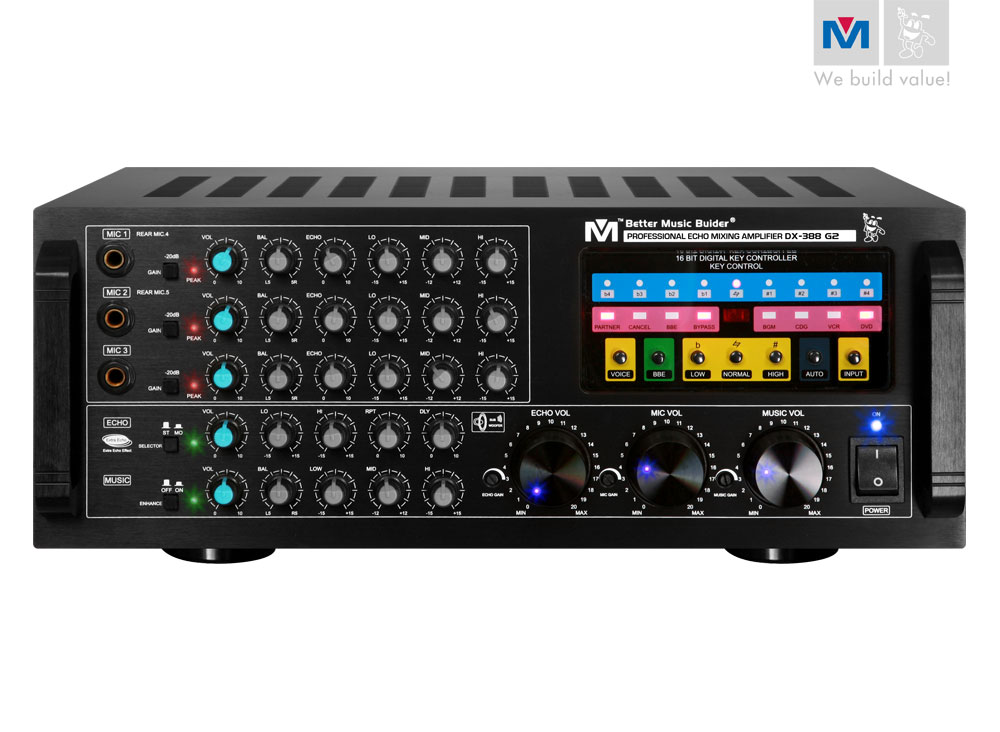

It is the second generation of mixing power amplifier and it is designed in such a way that it has four A/V inputs (DVD, VCR, CDG and BGM), and both manual and auto input selections can be set up. It also has nine built-up music key controls. Adjustments for MUSIC, MICROPHONE TONE and ECHO can be made separately at the front panel. It also has two different signals for bass output for subwoofer: one for music bass and the other for music and vocal mixing. This is the latest audio technology. You can turn your home into a KTV club with this unit. It is also good for audio equipment rental.

Specifications

• Power Output (RMS): 800W (200W x 4 @8 ohm) / 1200W (300W x 4 @4 ohm)
• Input Sensitivity: 200mV
• Input Impedance: 47K ohm
• BASS Control: 100Hz ± 15dB
• MID Control: 1kHz ± 15dB
• TREBLE Control: 10kHz ± 15dB
• T.H.D.: <0.1%
• Frequency Response: 20Hz~20kHz, -1dB
• Noise Ratio: >90dB
• Power Source: 120V / 60Hz
• Microphone Connector: 1/4 inch TRS/unbalanced
• Microphone Input Sensitivity: 1mV~100mV
• Microphone Input Impedance: 1.5K ohm
• Microphone T.H.D.: <0.5%
• Microphone Frequency Response: 20Hz~15kHz, -3dB
• Digital Echo: Up to 300ms
• Video Input/Output: 1Vp-p/75 ohm
• Standard Power: AC 120V/~60Hz
• Dimensions (WxHxD):17x7x16 (inches)/43x17.8x40.7 (cm)
• Net Weight: 28.8 Lbs / 13.1 kg
• Shipping Weight: 34.6 Lbs / 15.7 kg
