DX-5000 High Quality CPU Mixer

Mouseover image to zoom
Documents
User Manual
Hook Up Diagram
Panel Drawing
Installation
Brochure



Accessories
Parts & Accessories

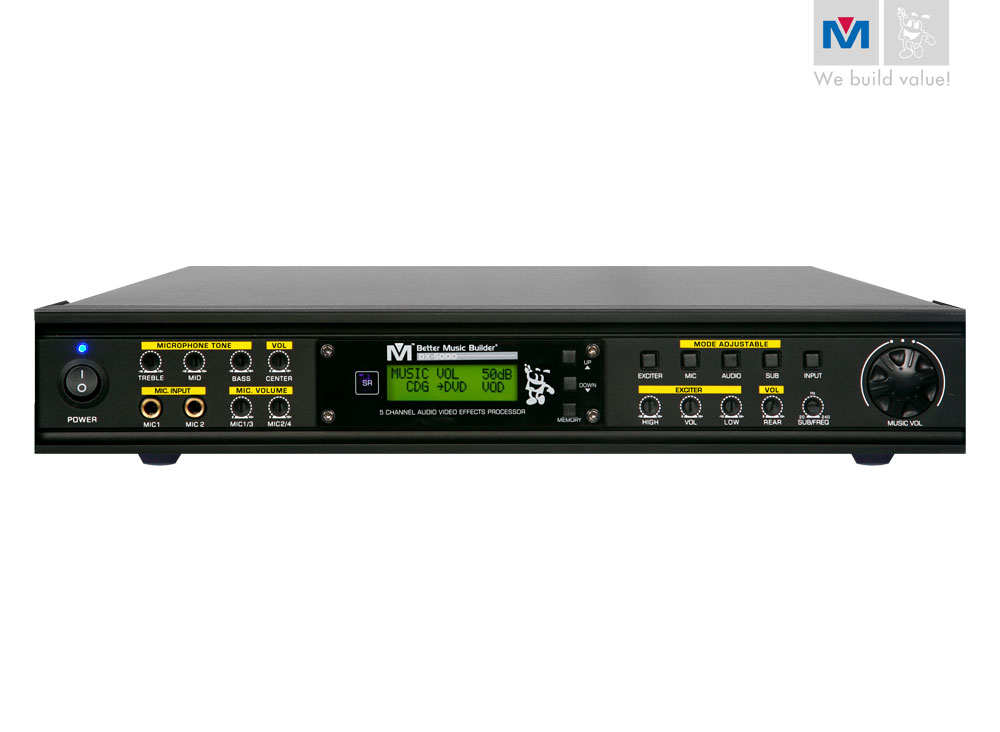

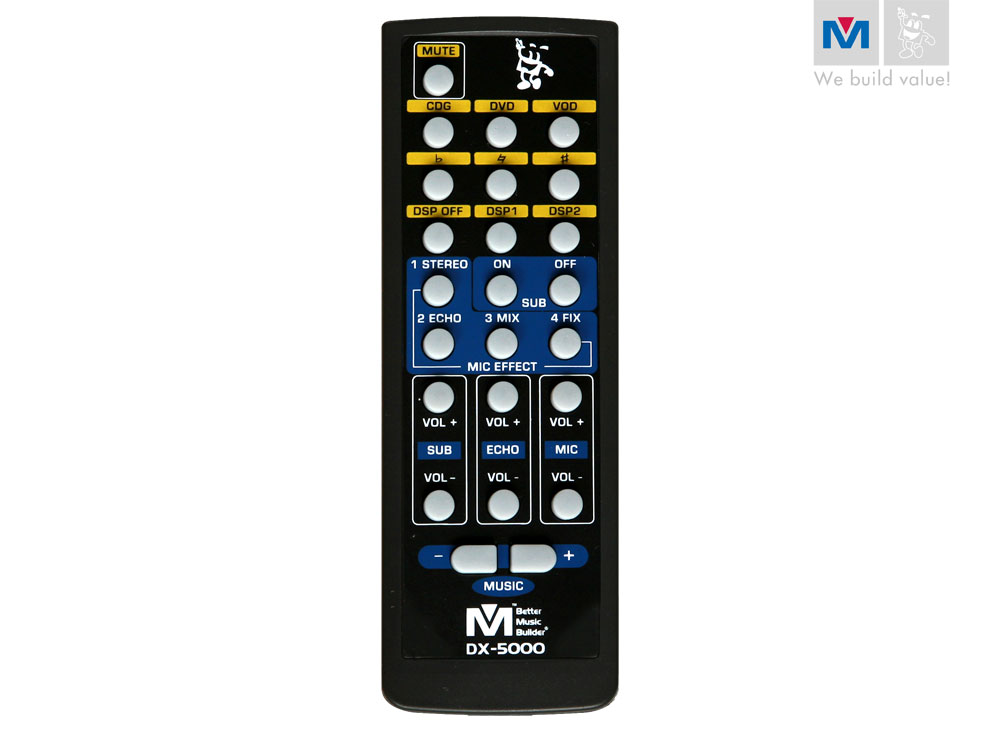

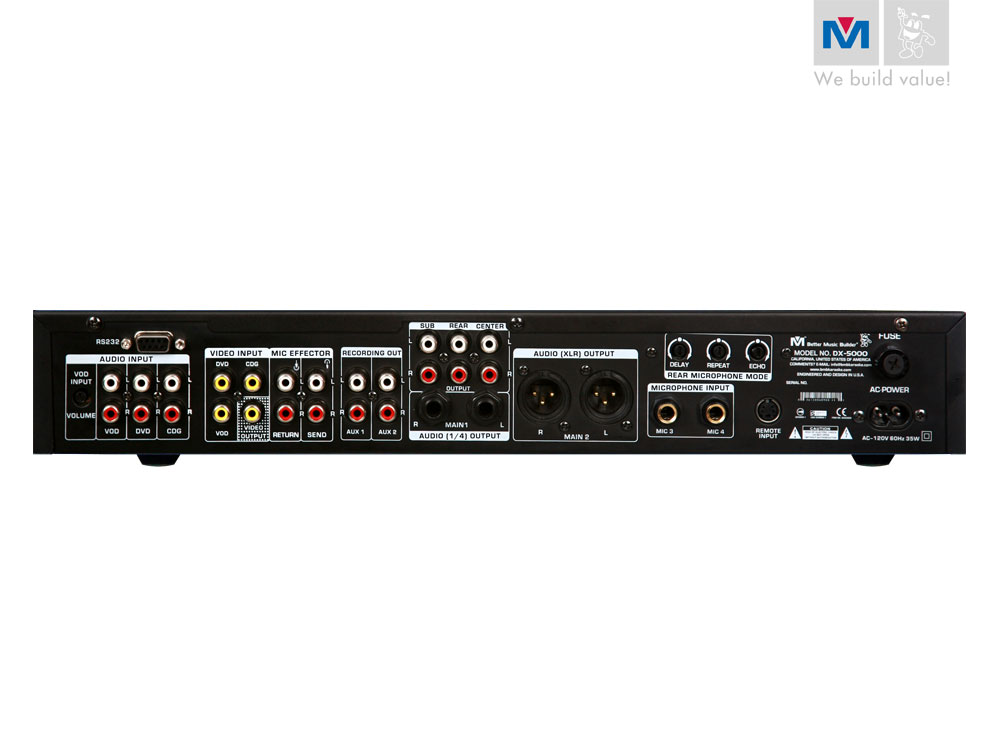

Front View - Back View - Remote Control
Images/Slideshow





Better Music Builder's second generation CPU controlled mixer, DX-5000, is a CPU controlled High performance 24-bit multi-engine Audio Video Karaoke Effect Processor. DX-5000 uses the state-of-the-art audio technology to design a Central Processing Unit (CPU)-controlled high quality mixer with five channels to maximize the sound quality and effects. It comes with built-in RS-232 port for 3rd party PC controllers with the free software downloadable at our website.

The DX-5000 is mainly used as a pre-amp with special features such as configuring the microphone vocal to come directly from the center (monitor speaker), the main (front left right speakers), or the rear speakers, customizable to your preference. Excellent microphone vocal effect such as echo and delay features for front, center, and/or rear speaker. The importance of the center monitor speakers is realized in this 5 channel system. You may install 2 center/monitor speakers. For example in a concert environment one center speaker is aimed at the audience and one aimed towards the singer, so the singer can monitor his own vocal performance. This is a dream come true for you who wants your own live home concert, with 2 center speakers you can fully recognize your self elegance in singing. You will be a professional singer at least in home or in a party.

The DX-5000 audio/video effect processor enable more unique music and microphone sound effects, which include personal microphone setup, maximum music volume lockup, the ability to lock on personal favorite settings, and the ability to pre-amp for high-end quality mixer and also prevent audio equipment from burning and breakage. The must have Smart Auto Input Switching (SAIS) function is included in the DX-5000; making it one of the best cost and value system for the KTV clubs to save manpower and money in their operation.

Features

  • Five channels (pre-amp) including main speakers (right and left), center speakers, rear speakers (right and left) and subwoofer.
  • 5-D PRO Audio independently controlled music and vocal effect to avoid the feedback and create the live sound concert concept.
  • Vocal from only the center vocal speaker or from the main, rear and center vocal speakers for singing and talking.
  • CPU controlled effect adjustments for different microphone tones (i.e. Delay, Repeat and Echo)
  • Vocal effect main and rear speaker separately controlled, the main out effect controlled in front panel and the rear panel.
  • Special software suite built-In software programming RS-232 to allow computer to operate easily, free download from website.
  • DSP sound effect, three digital sound effects for customization.
  • Four microphones input at the same time.
  • Special effects for microphone including strengthening the delay, repeat and echo.
  • Special adjustment and customization for digital music key controlled by CPU.
  • Signal in and out both bypassing and non-bypassing XLR balance functions for audio signals.
  • Selection for stereo pre-amp.
  • Portable for standard rack is suitable for audio use by church, school, company conference, café. It is excellent for Karaoke use and equipment rental.

Specifications

  • Source Input: CDG (Manual), DVD (BGM), VOD ( Main )
  • Input Function: SAIS (Auto & Manually)
  • Microphone Input: 4 (Front x 2, Rear x 2)
  • Video Inputs: 3 (RCA jacks)
  • Video Outputs: 3 (RCA jacks)
  • Audio Inputs: 3 (RCA jacks)
  • Audio Outputs: 3 (RCA jack x1, 1/4 jack x1 and XLR balanced x1)
  • Music Input Section
    • S/N Ratio: >90dB
    • THD: 0.01%
    • Input Sensitivity/Impedance: 0.707v/47k. ohm
    • Frequency Response: 20Hz~20kHz ±2dB
    • Max. Output: 4Vpp/60W
    • HF (increase/attenuate): ±10dB
    • LF (increase/attenuate): ±10dB
    • Key Control: ±4dB
    • Super Bass (SUB) THD: 0.07% 20Hz~15kHz
  • Mic. Input Section
    • S/N Ratio: >80dB (effect on)
    • THD (effect off): 0.04% 50Hz~16kHz
    • Frequency Response: 50Hz~20kHz ±3dB
    • Input Sensitivity/Impedance: 100mv~500mv/4.7K Ohm
  • Equalize control by CPU
    • Low: 100Hz±5dB
    • Middle: 1kHz±5dB
    • High: 10kHz±5dB
    • Standard Power: AC 120V/~60Hz (North America Market) / AC 220V/~50Hz (Asia or Europe Market)
    • Power Consume: 35 Watts
  • Dimensions (WxHxD): 17x3x13.25 (inches)
  • Net Weight: 13.23 Lbs. / 6 Kg
  • Shipping Weight: 15 Lbs. / 6.8 Kg

Details

MSRP: $599.00
