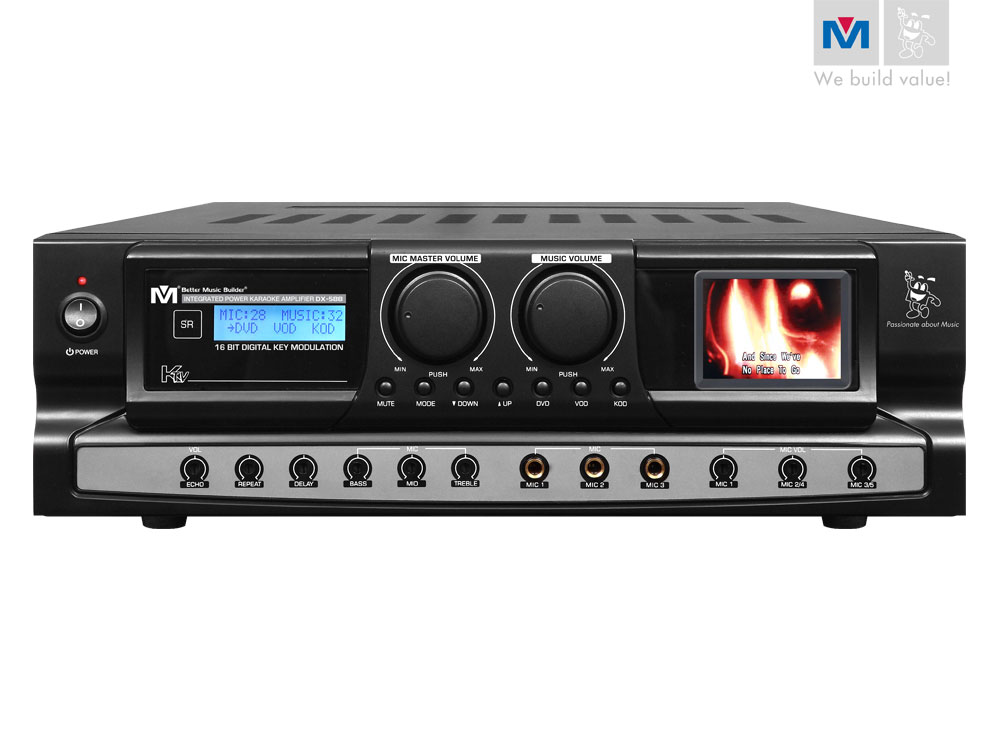

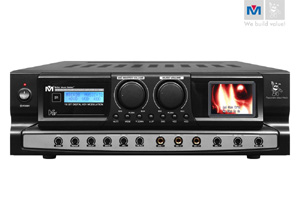

Future LCD CPU Karaoke Mixing Amplifier

DX-588 is the fifth generation of the CPU-controlled Karaoke powered mixing amplifier with 700 watts developed by the engineering team of Better Music Builder.

DX-588 is equipped with a special function called the Smart Auto Input Switching (SAIS) for commercial use. With this special function, it can help the KTV clubs save the manpower and time in controlling and operating the Karaoke system.

With the state-of-the-art CPU technology, DX-588 creates digital vocal that comes out from the center speaker while the music comes from the two main speakers (left and right). Therefore, it can reduce the feedback easily. It also has four different DSP functions with memorizing power to produce sound effects.

DX-588 is the most advanced Karaoke powered mixing amplifier that can create a new Karaoke effect with five channels to enable an option for center speaker for monitoring the vocal. DX-588 enables you to set up two main and two rear speakers with an additional center speaker for producing special effects.

Features

• 3.4" LCD Screen
• DSP (Digital Sound Processor
• Digital Key Control
• 4 kinds of DSP Karaoke effect selection:
  1. Stereo effects
  2. Echo effects
  3. Two effects mixed with fixed echo return times, with no adjusting
  4. Adjust the fix-up effects setup by manufacturer. Parameters cannot be adjusted
• High performance 24-bit multi-engine effect process
• Data in high accuracy including music, vocal and echo effect
• Discrete mic/line input sates with soft mute +48 phantom power
• Ultra-wide bandwidth from 2Hz to 200kHz for open sound
• Music tone with bass from 00dB to maxium 80dB and treble form 00dB to 80dB
• High-performance 24-bit dual-engine Feedback Destroyer
• Single-shot mode automatically searches and attenuates feedback frequencies and locks the filter until manually reset
• Music modulation with 9-step key control and adjustable up and down effects for selection
• Music volume lock is used to lock up the super bass
• 2-way stereo crossover
• 24dB/octave, state variable Linkwitz-Riley filter for precise frequency separation
• Absolutely flat summed amplitude response with zero phase difference
• Separate subwoofer output with independent frequency control form 20Hz to 240Hz to enhance the bass signal
• Center speaker echo effect with ON/OFF for monitoring the center speaker output level without affecting the main speaker output volume
• Adjustment for VOD input signal volume
• Two extra AC power input outlets for additional connection. Maxium voltage is 800 Watts
• Dynamic or condenser microphone limiter effectively protects your equipment from overload
• Microphone reverb (echo) time delay and repeat adjusting for parameters between 30mS to 190mS

Specifications

• Main Output Power RMS: 700 Watts (350W+350W) 8ohm, (650W+650W) 4ohm
• Center Speaker Output Power: 80W~200W (4~8ohm)
• Microphone Input: 5 (Front x 3, Rear x 2)
• Source Input: DVD (Manual), CDG (BGM), VOD (Main)
• Input Function: SAIS (Auto & Manually)
• Video Outputs: 3 (RCA jacks)
• Audio Outputs: 3 (RCA jacks)
• Key Control: 9 steps
• Echo: Digital processor
• Frequency Response
  • Input Sensitivity/Impedance: 20Hz~20kHz +/-3dB
  • Microphone: 5mv~100mv/600ohm
  • Line: 250mv~47kohm
• Music Tone Control
  • Low Frequency (Increase/Attenuation): +/-8dB
  • High Frequency (Increase/Attenuation): +/-8dB
• Microphone Tone Control
  • Low Frequency (Increase/Attenuation): +/-5dB
  • High Frequency (Increase/Attenuation): +/-5dB
  • Audio Tone Control: 0.707V/1kohm
• Output Impedance
  • With Shorten-Circuit Protection: 4~16ohm
  • Recommend Impedance: 8ohm
  • Power Supply: AC 120~240V/50~60Hz
  • Standard Power: AC 120V/~60Hz (North America Market) / AC 220V/~50Hz (Asia or Europe Market)
  • AC Power Consume: AC 120V/800W
• Dimensions (WxHxD): 17"x 6.5"x 17" / 43 x 16 x 43 (cm)
• Shipping Weight: 46 LBs
