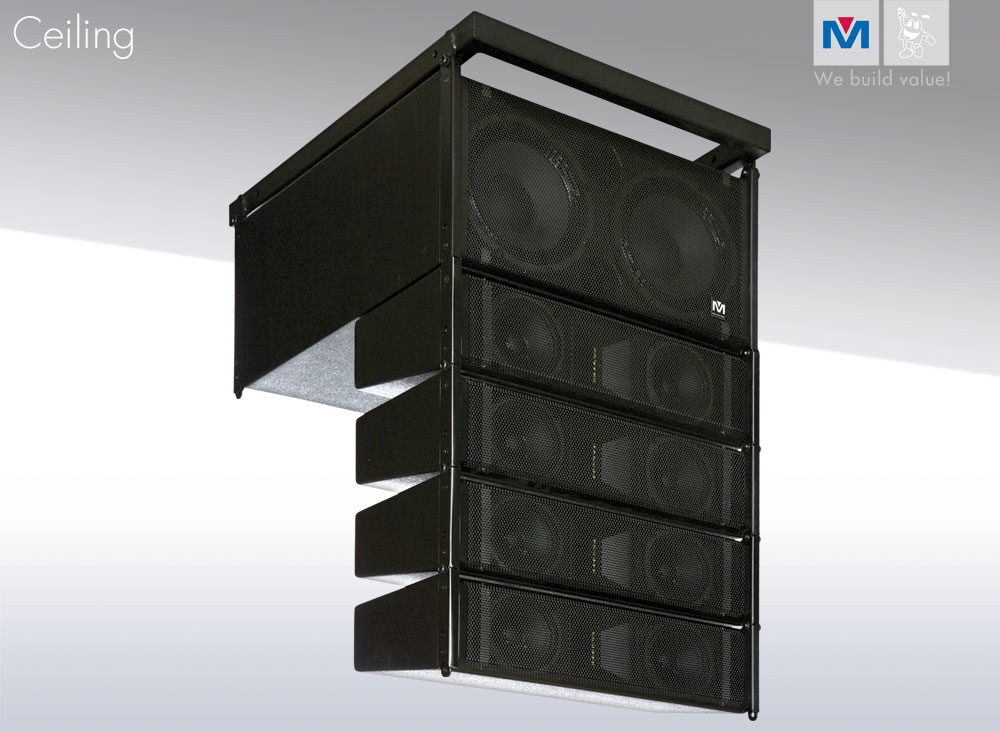

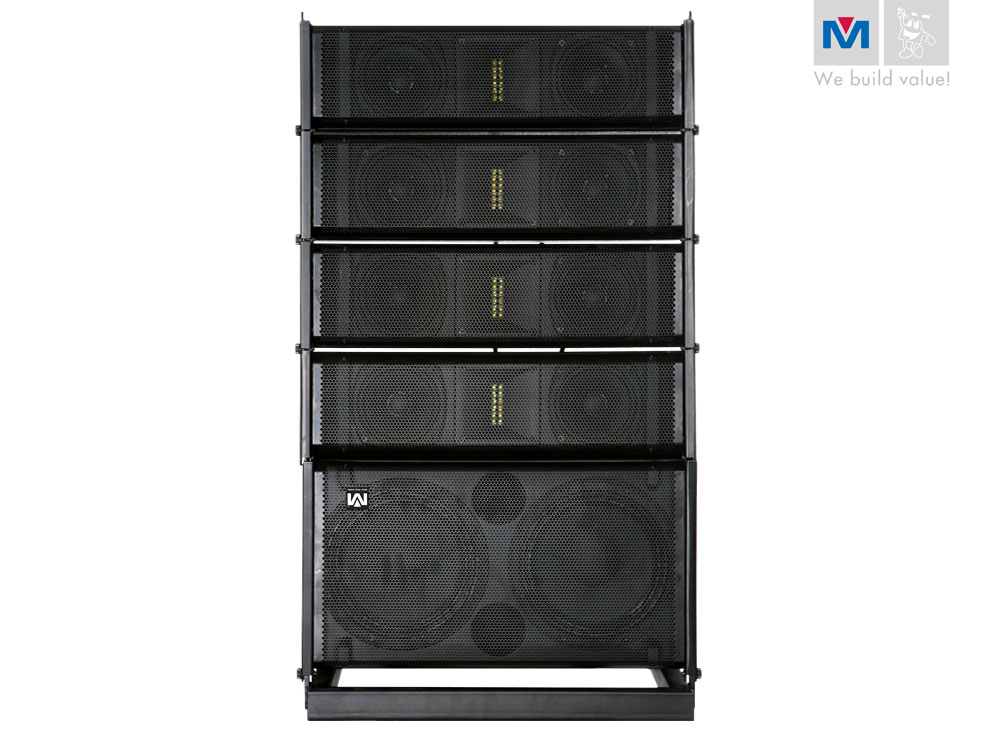

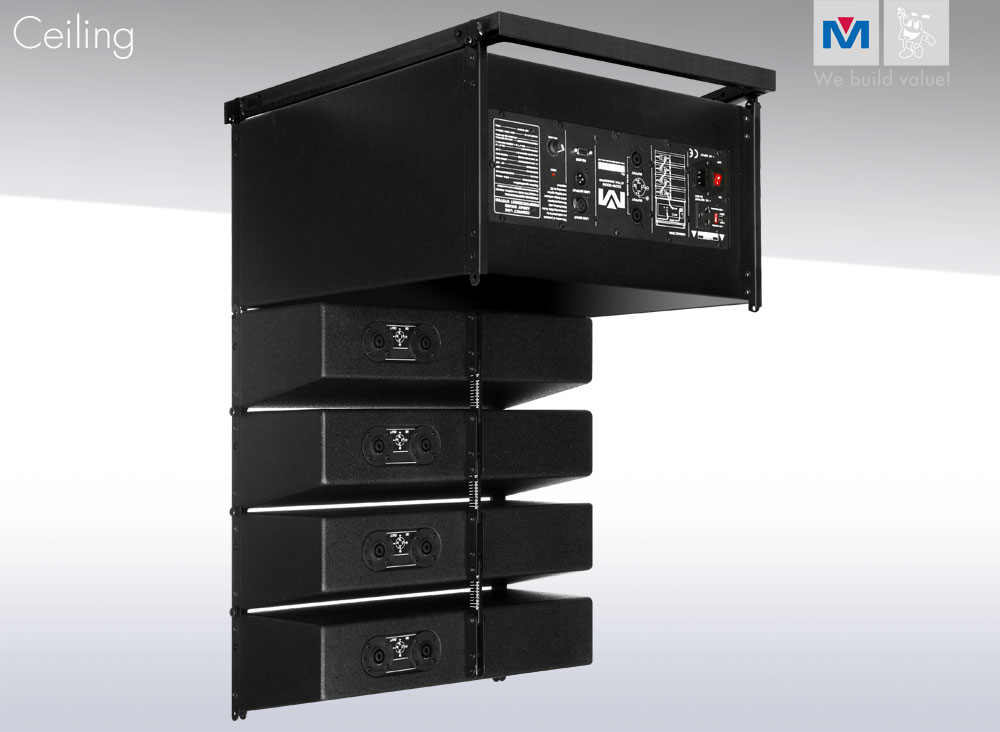

Better Music Builder R4-SUB1 is latest compact line array surround reinforcement system developed by its engineering team with many years of experience in audio equipment design. R4-SUB1 has four mid and high frequency speakers and one subwoofer. It is specially designed for Luxury cinema, large-sized meeting room, multi-functional hall, church and auditorium applications. The system consists of one active subwoofer and four full range speakers which can form multi-cluster configurations.
Specifications
Frequency Response (-3dB) 50Hz-40kHz
Frequency Response (-10dB) 45Hz-40KHz
Power Rating L:300W
H:Standard SPL 115dB
Max SPL 121dB
Crossover point L/M: 125Hz, M/H :3.2KHz
nput Impedance 10kohm
Dispersion (switchable) 120 degree x (30°-90°)
Connecting Mode NL4
Power supply AC 120V/50Hz
Dimensions (WxHxD): 16.89 (W) x 35.4 (H) x 23.94 (D) inches / 42.
9 (W) x 90 (H) x 60.8 (D) cm
Net Weight 99.2 lbs / 45 kg
Shipping Weight 110 lbs / 50 kg
