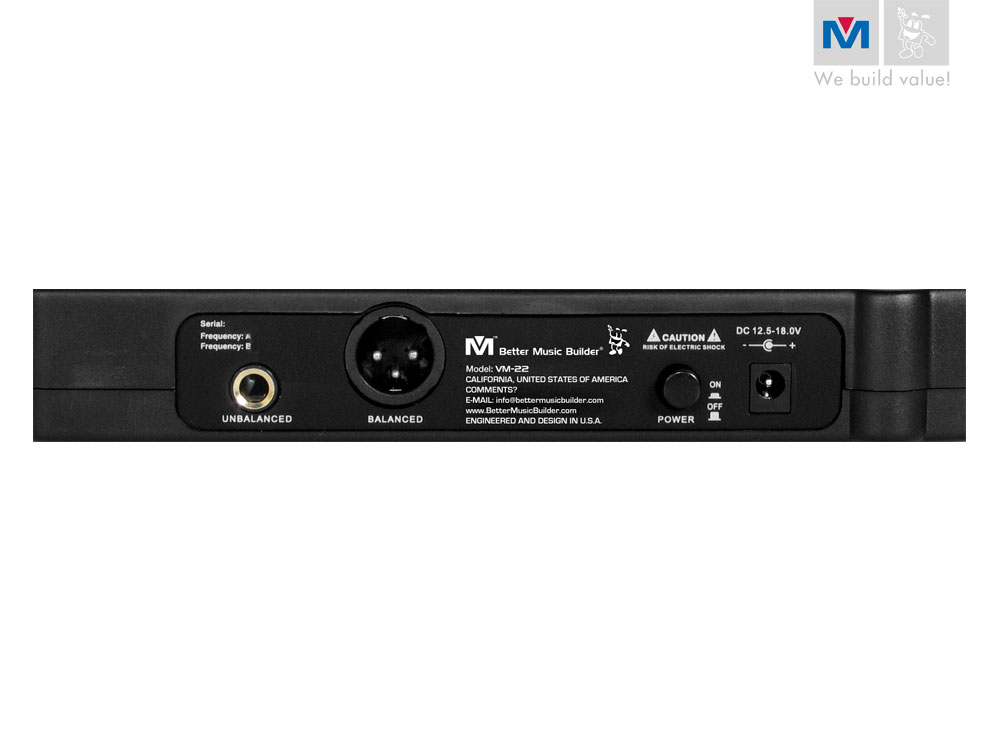

Receiver:

• Channel-A, B AF volume adjust output jacks +/-15KHz
• Channel-A, B power
• RF (Radio Frequency) peak indicators (Ch-A, B)
• AF (Audio Frequency) peak indicators (Ch-A, B)
• Mixed channels 1/4" unbalance audio output connector
• Mixed channels XLR balance audio output 50Hz~15KHz +/-3dB
• Power switch On/Off
• Docking power supply with removable IEC cable 12.5-18.0 V
• Rugged undirectional dynamic element

Transmitter:

• Low battery indicator
• Transmitter On and Mute switch
• Variable battery cover

Specifications

• RF carrier frequency range: 169.445~221.350 MHz
• Working range: 100ft under typical conditions
• Audio Frequency Response: 50~15,000 Hz, +/- 2dB
• Audio output level: +/- 15 kHz deviation, 1 kHz tone
• 1/4-inch connector (into 3k Ohm load): -8.8 dBV (Hi Z)
• 1/4-inch connector (into 3k Ohm load): -18 dBV (mix)
• RF power output: about 30 mWatt
• Battery size: 9V battery (included)
• Receiver dimensions: 9"L x 5"D x 1"H
• Handheld Transmitter Dimensions: 9.5"H x 1.5"W
