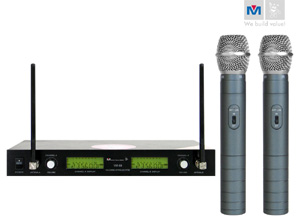

VM-88 Dual Channel Wireless Microphone System

Mouseover image to zoom
Documents
User Manual
Hook Up Diagram
Panel Drawing Installation
Brochure



Accessories
Parts & Accessories

Front View - Back View - Charger
Images/Slideshow





Features

Receiver:

  • Power switch ON/OFF
  • Receiver Antenas-A and B
  • Channel-A AF volumne adjust output jacks +/-15KHz
  • LED display (Channel A+B)
  • Channel-B AF volume adjust output jacks +/- 15KHz
  • Channel - A and B 1/4-inch unbalance audio output connector
  • Channel - A and B XLR balance audio output 50Hz~15KHz +/- 3dB
  • Docking power supply with removable IEC cable 12.5-17V 600mA
  • Adjusts squelch control setting to emphasize either signal quality
  • Battery indicator
  • Easily-accessible power switch ON/OFF
  • Battery cover unscrews for access to the 9V battery rechargeable
  • Variable battery cover

Handheld Transmitters:

  • Battery condition indicator
  • ON/OFF switch

Specifications

  • RF carrier frequency range: 169.445~221.350 MHz
  • Working range: 100ft under typical conditions
  • Audio Frequency Response: 50~15,000 Hz, +/- 2dB
  • Audio output level: +/- 15 kHz deviation, 1 kHz tone
  • 1/4-inch connector (into 3k Ohm load): -8.8 dBV (Hi Z)
  • 1/4-inch connector (into 3k Ohm load): -18 dBV (mix)
  • RF power output: about 30 mWatt
  • Battery size: 9V rechargeable (included)
  • Receiver dimensions: 14"L x 7"D x 2"H
  • Handheld Transmitter Dimensions: 10"H x 1.5"W
  • Weight: 8 lbs.

**Charger and battery included**

Details

Weight:12.00 lbs
MSRP: $399.00
