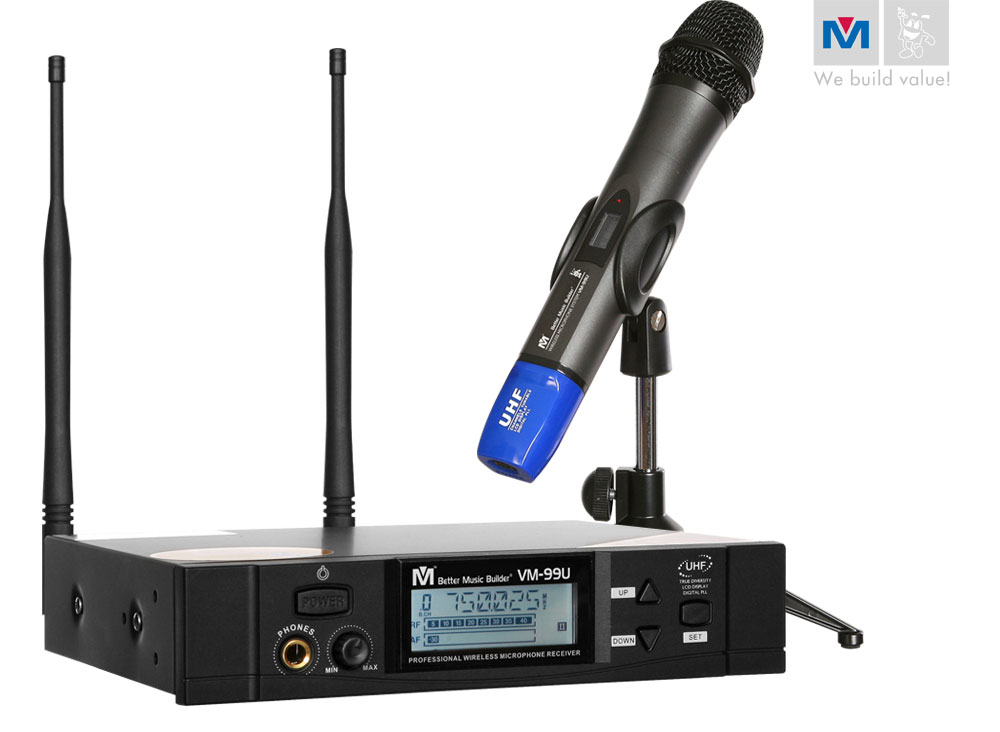

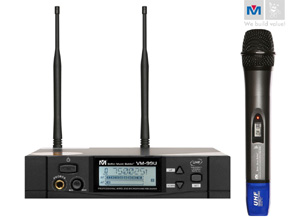

VM-99U Professional UHF Wireless Microphone System

Mouseover image to zoom
Documents
User Manual
Hook Up Diagram
Panel Drawing
Brochure



Accessories
Parts & Accessories

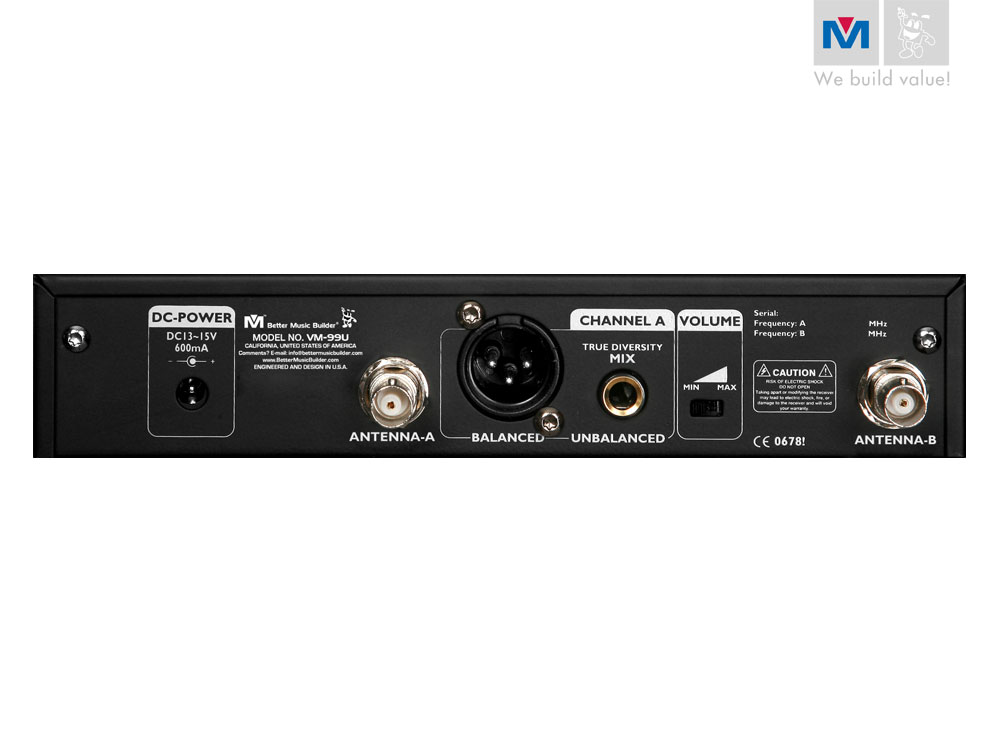

Front View - Back View - Side View
Images/Slideshow





The new VM-99u wireless microphone is the first generation of UHF wireless microphone system designed by the engineering team of Better Music Builder.

VM-99u is designed for both commercial and public use. It is a heavy duty design including one hand-held microphone with one receiver. Each hand-held microphone has a total of 16 frequencies. We have set up 16 frequencies for each microphone to make the frequency selection easily. This system is reliable for use by KTV clubs, restaurants, coffee shops and churches, etc.

Features:

  • The working frequency range: UHF520~810MHZ (tunable)
  • CPU control (PLL frequency compose technique)
  • Channels: 16 or 100 (optional & tunable)
  • True diversity system control by CPU for the advance break up function and control receiving of the right and left channels
  • Big LCD (Liquid Crystal Display)
  • The transmit and receive audio system is adopted high-pass, low pass & band-pass filter technique to avoid noise and keeps sound quality

A. Technological Feature of the Receiver Base Module:

  • Frequency Range : UHF 520MHz~820MHz
  • Signal to Noise Ratio: > 80dB
  • Harmonic Interference Ratio: > 75dB
  • Frequency Response: 80Hz ~ 15kHz ±3dB
  • Dynamic Range : 12-32dBuV
  • Image & Spurious Rejection: < 1%
  • Receiver Sensitivity: 12dBuV
  • Audio Output Level: Unbalanced Out: 0~±500mV/5k Ohm / Balanced Out: 0~±500mV/500 Ohm
  • DC Power Supply: 12~14V DC
  • Work Current: 300mA

B. Technological Feature of the Microphone:

  • Transmitter Power: 20-30mW
  • Modulation Type: FM
  • Max Deviation: ±45kHz
  • Battery Voltage: 9V Battery
  • Continuous Using: 6 Hours (GP) 1604s 9V Battery

Shipping Weight: 5 lbs / 2.27 kg

Details

MSRP: $499.00
