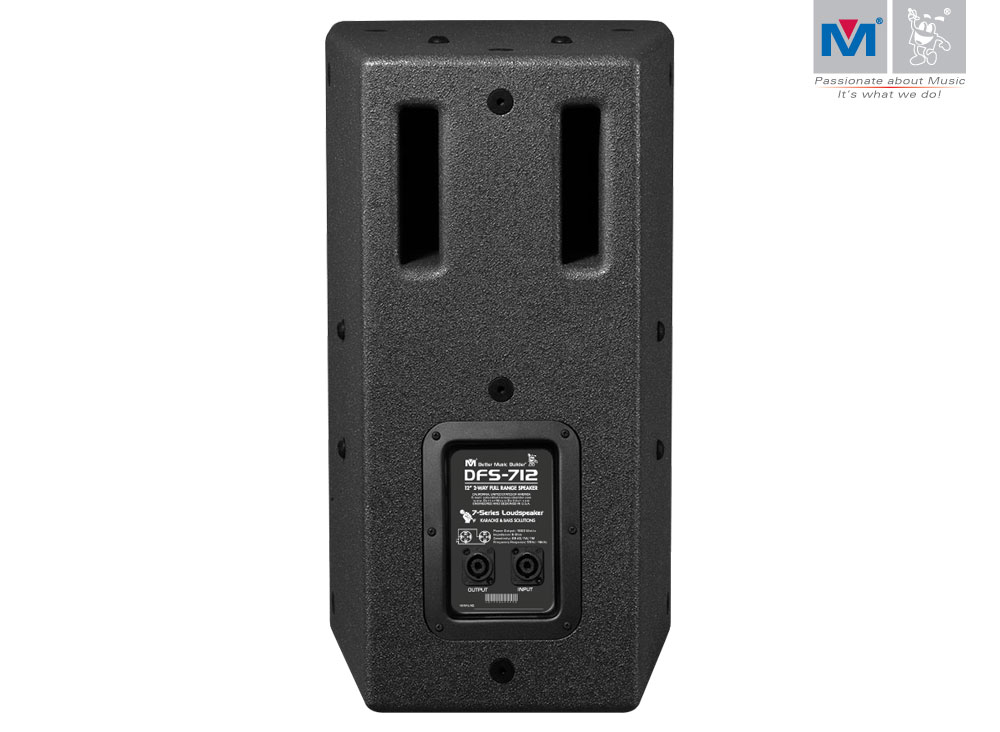

DFS-712 2-Way Full Range Loudspeaker 1600 Watts


Better Music Builder (M) is excited to introduce the new Dynamic Fusion Series speakers, the DFS-712 (12-inch woofer). DFS-712 is a high-performance 12-inch 2-Way full-range passive loudspeaker developed with the latest technology and performs with precise clarity and reliability. The system comprises one 12” high-power low-frequency transducer and one 1.7” diaphragm compression high-frequency driver. Their compact design makes them easily mountable on walls, ceilings, or underneath the balcony. The versatility of these speakers and their attractive design are perfect for trendy spots such as karaoke bars, sports bars, and nightclubs.

Dynamic Fusion Series are high-performance speakers developed with the latest computer stimulation design and manufacturing technology. With unique LF extension technology, our highly efficient professional speakers perform high-quality and precise sound. The LF unit is manufactured with a waterproof non-linear fabric paper cone and the HF unit with high temperature-treated magnalium diaphragm, voice coil with copper cladding aluminum wire, and compression cavity designed with linear phase technology.

These heavy-duty speakers are constructed with high-intensity plywood that can reduce interference and further enhance sound quality. Each highly durable cabinet is built to withstand strong weather conditions and its versatile design allows it to be easily pole-mounted or installed onto walls and ceilings.

Better Music Builder is simply the best solution for home and professional karaoke performances!

MSRP699.99 USD
Weight50.70 LBS
User Manual Hook Up Diagram Panel Drawing
Installation Brochure Parts & Accessories





  • 2-Way full range passive loudspeaker
  • 1 x 12” high power low frequency transducer
  • 1 x compression driver with 1.7” titanium diaphragm
  • 2 x NL4 connector
  • Dynamic Fusion Technology™ (DFT)
  • Enclosure constructed of 15 mm plywood with durable painting
  • 100° x 90° wide dispersion can set better coverage
  • Frequency response 55Hz~18kHz
  • Sensitivity 99dB
  • Computer stimulation design technology ensures good frequency response and excellent phase feature
  • Integral 35mm pole mount receptacle for stand or vertical installation
  • Flexible and easy-to install configurations (wall, ceiling, under balcony)
  • Applications: Restaurants, clubs, bars, conference rooms, churches, schools and homes


Tech Specs

  • Type: Front
  • Cabinet Type: High-Intensity Plywood
  • Supported Fixture: Ceiling Mount, Wall Mount, Floor Stand
  • Woofer: 12 inches (1 unit) high power low-frequency transducer
  • Tweeter: 1.7 inches (1 unit) diaphragm compression driver
  • Power Rating: RMS 400W, PEAK 1600W
  • Rated Impedance: 8 ohms
  • Frequency response: 55Hz~18kHz (± 3 dB)
  • Sensitivity: 99dB/1W/1M
  • Rated Impedance: 8 Ohms
  • Maximum SPL: 123 dB (129 dB peak)
  • Dispersion: 100°× 90° (H × V)
  • Construction: 15 mm, plywood
  • Installation: M8 hanging point
  • Connector: 2 x NL4 Speakon
  • Cabinet Dimensions (W×H×D): 13.8×26×15 in / 35×65.9×38 cm
  • Packing Dimension (WxHxD): 19×26.6×16.9 in/48×67.5×43 cm
  • Net Weight: 46.3 Lbs / 21 Kg (each)
  • Shipping Weight: 50.7 Lbs / 23 Kg (each)
  • UPC Code: 743062981732
