DFS-910 Pro 2-Way Full Range Speaker 800 Watts

dfs-910-1

Dynamic Fusion Series are a line of high-performance speakers introduced by Better Music Builder using Dynamic Fusion Technology™ (DFT). The series consist of the following models: DFS-206, DFS-306, DFS-406, DFS-506, DFS-804, DFS-810 Beta, DFS-812 Beta, DFS-908 G2, DFS-910 Pro, DFS-112 SUB 2.1 and DFS-115 SUB 2.1, DFS-12A.

Dynamic Fusion Series are high-performance speakers developed with the latest computer stimulation design technology and manufacturing technology. Utilizing unique LF extension technology, it performs with precise clarity and reliability. The LF unit is manufactured with a waterproof non-linear fabric paper cone. The HF unit is manufactured with a high temperature-treated magnalium diaphragm, voice coil with copper cladding aluminum wire, and compression cavity designed with linear phase technology. The magnetic circuit of the tweeter generates high magnetic energy, low distortion, excellent ventilation function, and high strength plywood that absorbs the sympathy of noise for higher performance.

The compact design of High Definition Speaker DFS-910 Pro can be easily mounted onto walls, ceiling, and underneath the balcony. The versatility of these speakers and their attractive design are perfect for trendy spots such as karaoke bars, sports bars, and nightclubs.

The Dynamic Fusion Series are each sold separately to your own customizable needs. Please visit our website www.bettermusicbuilder.com to learn more about our Dynamic Fusion Series and other products.

MSRP$699.99 USD
Weight44.0 LBS
User Manual Hook Up Diagram Panel Drawing
Installation Brochure Parts & Accessories







Features

  • 2-Way full-range passive speaker
  • 1 x 10” high power low-frequency transducer
  • 1 x 1.7” titanium diaphragm compression driver
  • 1 x NL4 connector
  • Dynamic Fusion Technology™ (DFT)
  • High SPL and sensitivity
  • 55~100° x 50° controlled coverage pattern
  • Frequency response 70Hz~20kHz
  • Sensitivity 94dB
  • Computer stimulation design technology ensures good frequency response and excellent phase feature
  • Multi-purpose cabinet design for FOH or monitor use
  • Integral 35mm pole mount receptacle for stand or vertical installation
  • Combine with any Better Music Builder high-power sub speaker for extended low frequency, high-quality music reproduction Powder coated grill
  • An Independent crossover circuit provides low distortion and interferer
  • Suitable for all kinds of rock bars, entertainment bars, nightclubs, all kinds of living performances, and portability
  • Flexible and easy-to-install configurations (wall, ceiling, under balcony)



Tech Specs

  • Type: Front
  • Power Rating: Peak 800W; RMS 400W
  • Cabinet Type: High-Intensity Plywood
  • Supported Fixture: Ceiling Mount, Wall Mount, Floor Stand
  • Woofer: 10 inches (1 unit)
  • Rated Impedance: 8 ohms
  • Spot Range: Compression driver with 1.7” titanium diaphragm (1 unit)
  • Frequency Response: 70Hz ~ 20kHz (±3dB)
  • Sensitivity: 94dB/1W/1M
  • Crossover Frequency: 1.8 kHz
  • Dispersion: 55~100° x 50° controlled coverage pattern
  • DC Impedance: 5.6 Ohm
  • THD: <3%
  • Highlighted Features: Dynamic Vocal Effect

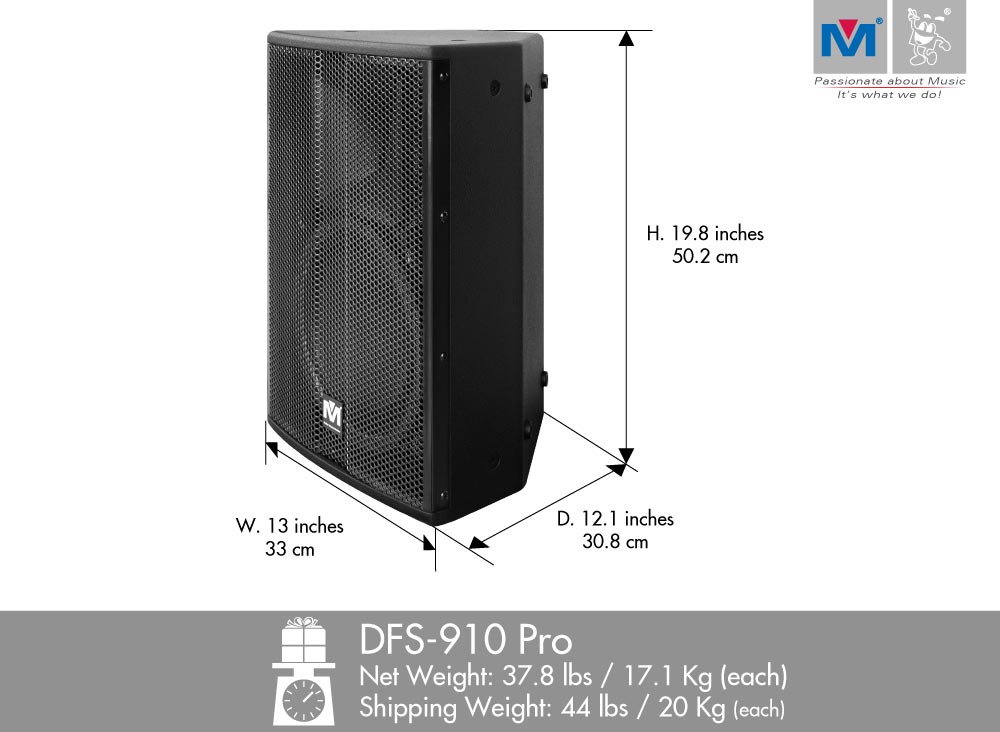

  • Dimension (WxHxD): 13×19.8×12.1 in / 33×50.2×30.8 cm (each)
  • Packing Dimension (WxHxD): 16.9×24.5×16.1 in / 43×62.2×40.8 cm (each)
  • Net Weight: 37.8 Lbs / 17.1 Kg (each)
  • Shipping Weight: 44 Lbs / 20 Kg (each)
  • UPC Code: 743062981718
