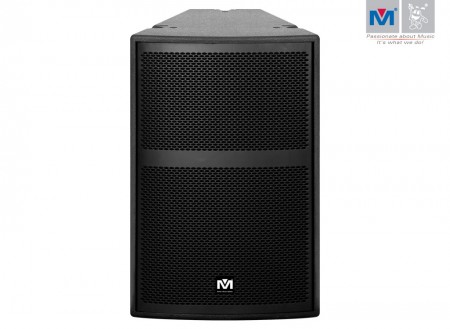

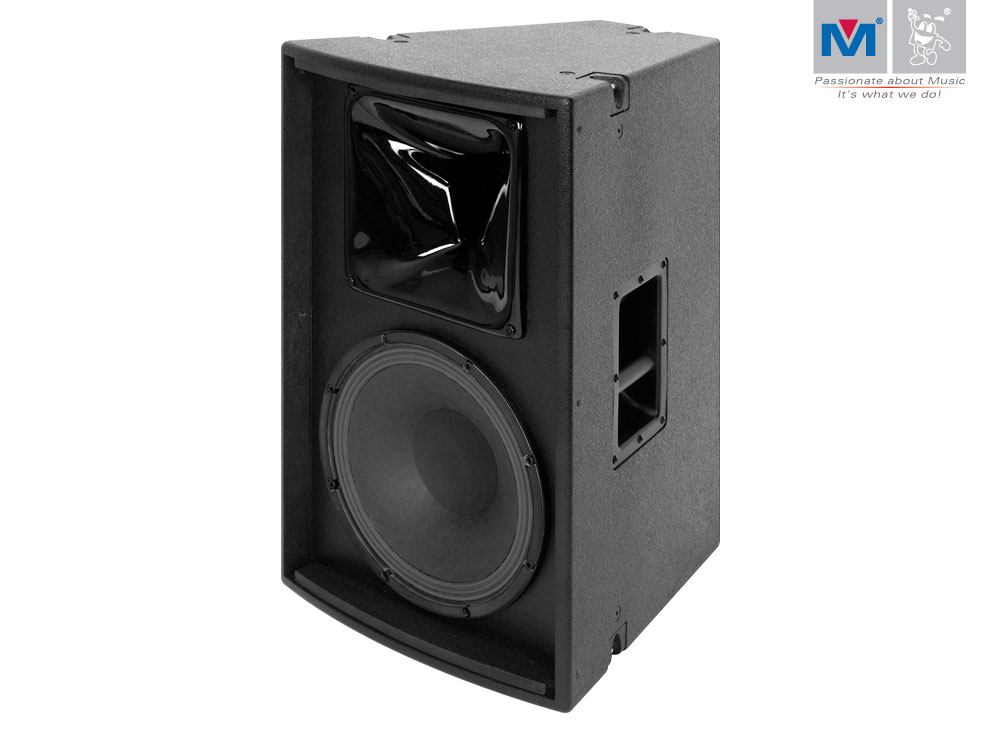

DFS-915 Professional High Performance Speaker 1000 Watts (Discontinued)

dfs-912-1

Better Music Builder’s engineering team created a new line of high performance speakers called the Dynamic Fusion Series (DFS-206, DFS-306, DFS-912, DFS-915, DFS-112 SUB and DFS-115 SUB) using Dynamic Fusion Technology™ (DFT). Dynamic Fusion Series are high performance speaker which developed with the latest computer stimulation design technology and manufacturing technology. With our high efficient professional speakers with unique LF extension technology, it performs high quality, precise clarity and reliability. LF unit manufactures with non-linear fabric paper cone which provides waterproof feature. HF unit manufactures with high temperature treated magnalium diaphragm, voice coil with copper cladding aluminum wire and compression cavity designed with linear phase technology. Magnetic circuit of tweeter generates high magnetic energy, low distortion and excellent ventilation function and high strength plywood absorb the sympathy of noise for higher performance.

These heavy duty HD speakers are made with solid plywood with a dense advanced environmental protection polyurethane-based painting. Each cabinet is armed to withstand strong weather conditions with its durability. With this particular design, DFS speakers are able to reduce interference and further enhance the sound quality. The compact design of High Definition Speaker can be easily pole-mounted or permanently installed onto wall, ceiling or under balcony. The engineering team of Better Music Builder designed this speaker specifically for all kinds of rock bar, entertainment bar, night club, and all kinds of living performance and portability.

MSRP$1,769.00 USD
Weight89.3 LBS
User Manual Hook Up Diagram Panel Drawing
Installation Brochure Parts & Accessories







Features

  • 15” professional high performance speaker with unique LF extension technology LF can be lower to 35Hz
  • Computer stimulation design technology ensures good frequency response and excellent phase feature
  • Tweeter and full range speaker with high quality performance
  • 1 x 15“ professional woofer
  • RMS 500W, peak 1000W
  • One compression driver with voice coil megnalium diaphragm
  • 60°×60° wide dispersion horn
  • Independent crossover circuit provides low distortion and interfere
  • Single Amplifier Driving Mode
  • Suitable for all kind of rock bar, entertainment bar, night club, all kinds of living performance and portability.



Tech Specs

  • Type: Front
  • Max. Power Handling: 1000 Watts
  • Cabinet Type: Selected High Intensity Plywood
  • Supported Fixture: Ceiling, Wall Mount, Ground, Floor Stand
  • Woofer: 15 inches (1 unit)
  • Tweeter: 2-Way Full Range with Hi-Fi Level Performance
  • Rated Impedance: 8 ohms
  • Spot Range: 1 Compression Driver with Voice Coil Megnalium Diaphragm
  • Frequency Response: 40Hz ~ 18kHz
  • Sensitivity: 95 dB
  • Crossover Frequency: 1.5 kHz
  • Highlighted Features: Unique LF Extension Technology
  • Dimension (WxHxD): 18.9×27.4×18.1 in / 48×69.6×46 cm (each)
  • Packing Dimension (WxHxD): 22.8×31.3×22 in / 58×79.6×56 cm (each)
  • Net Weight: 82.2 lbs / 37.3 kg (each)
  • Shipping Weight: 89.3 lbs / 40.5 kg (each)
  • UPC Code: 743062980360
