DX-388 G3 800W Professional Mixing Amplifier (Discontinued)
The DX-388 G3 Dynamic Fusion Amplifier is a new breed of Better Music Builder mixing amplifier. This third generation amplifier is a hybrid of power amplifier and mixer to help you save space and achieve convenience.
The DX-388 Series has been widely praised as one of the most user friendly mixing amplifiers. With its individualized and diverse controls front and center, a karaoke novice can be an experienced DJ in a matter of hours. Perhaps the most impressive leap for this third generation mixing amplifier is its accessibility. Besides the four composite A/V inputs in the rear panel, a multimedia expansion bay is located in the front for easy access. It allows playback of MP3 music files stored on a USB flash drive and SD card.
The toughest thing to handle for a power amplifier is clipping. Conventional designs use lots of negative feedback to provide stability and lower distortion. Unfortunately this method results in painfully audible distortion, because when clipping occurs, this “feedback” can cause high-frequency sticking, keeping the amplifier “latched” in the clipping state longer than necessary. Abandoning conventional designs, DX-388 G3 utilizes a new design to eliminate this high-frequency sticking allowing the amplifier to remain stable when powering high reactive loads.
It is simply the best solution for home and professional karaoke performance.
| MSRP | $799.00 USD |
| Shipping Weight | 42.2 LBS |
| User Manual | Hook Up Diagram | A/V Connections |
| Panel Drawing | Installation | Brochure |
| Parts & Accessories |
Features
- Front panel control for easy access
- Equalizer 3 band control (Hi-EQ, Mid-EQ, Low-EQ)
- 4-channel speaker outputs
- Multimedia Expansion Bay (USB & SD slots)
- BBE live sound effect enhances high and low pitch
- Music Gain signal limiter and sensitivity control
- Music Tone controls Bass, Mid-range, and Treble
- Microphone Gain signal limiter and sensitivity control
- Microphone Tone controls Bass, Mid-range, and Treble
- 9-Steps key control
- Automatic Zero Volume Adjustment
- Balanced adjustment for music level and vocal level
- Auto decrease microphone gain levels
- LED peak indicator for each microphone

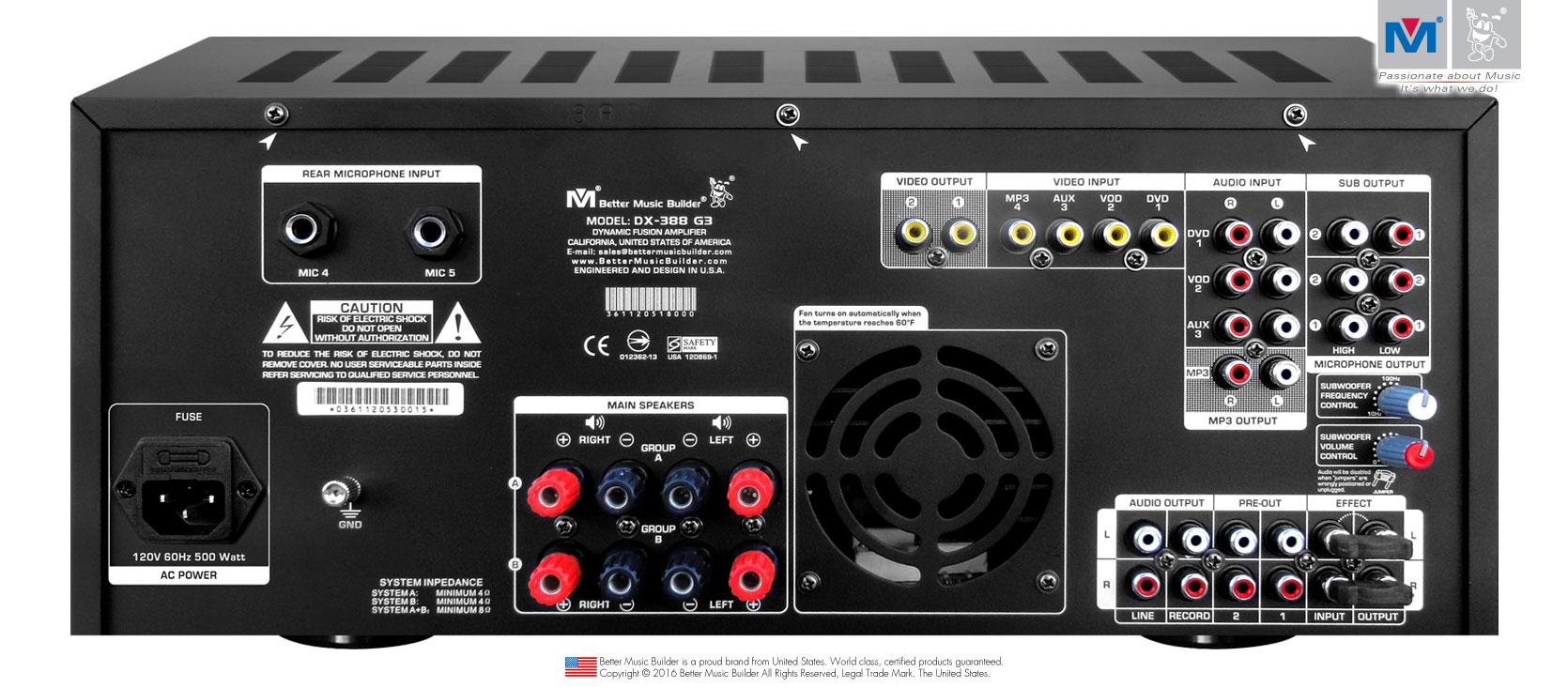

- Inputs: 5 microphone inputs (3 front and 2 rear), 4 audio inputs, 4 video inputs, and 1 effect input
- Outputs: 2 microphone outputs, 2 audio outputs, 2 video outputs, 2 subwoofer outputs, 2 pre-out, and 1 effect output
- Smart fan
- Front handles for easy handling
Tech Specs
- Power Output: Group A – 200 Watts + 200 Watts (8 Ohm) , Group B – 200 Watts + 200 Watts (8 Ohm)
- Microphone Inputs: 5 (Front x 3, Rear x 2)
- Microphone Outputs: 2 (RCA jacks)
- Video Inputs: 4 (RCA jacks)
- Video Outputs: 2 (RCA jacks)
- Audio Inputs: 3 (RCA jacks)
- Audio Outputs: 2 (RCA jacks)
- MP3 Inputs: 2 (USB/SD Card Reader Slot)
- MP3 Outputs: 1 (RCA jacks)
- Subwoofer Outputs: 1 (RCA jacks)
- Music Input Section
- S/N Ratio: >90 dB
- THD: <0.1%
- Input Sensitivity/Impedance: 160mV / 47K ohm
- Frequency Response: 20Hz~20kHz, +/-1.5 dB
- Max. Output: 1Vp-p / 75 Ohm
- Key Control: 9 steps
- Super Bass (SUB) THD: < 0.5%
- Mic. Input Section
- S/N Ratio: 74.5 dB
- THD (effect off): <0.1%
- Frequency Response: 20Hz~20kHz, +/-1.5 dB
- Input Sensitivity/Impedance: 1mV~100mV / 1.5k Ohm
- Equalize
- Bass Control: 100Hz ± 12 dB
- Mid Control: 1kHz ± 12 dB
- Treble Control: 10kHz ± 12 dB
- Standard Power: AC 120V/~60Hz (North America Market)
- Power Consume: 700 Watts
- Dimensions (WxHxD): 17×7.6×17.7 in / 43×19.2×45 cm
- Net Weight: 34.4 Lbs / 15.6 Kg
- Shipping Weight: 42.2 Lbs / 19.1 Kg
