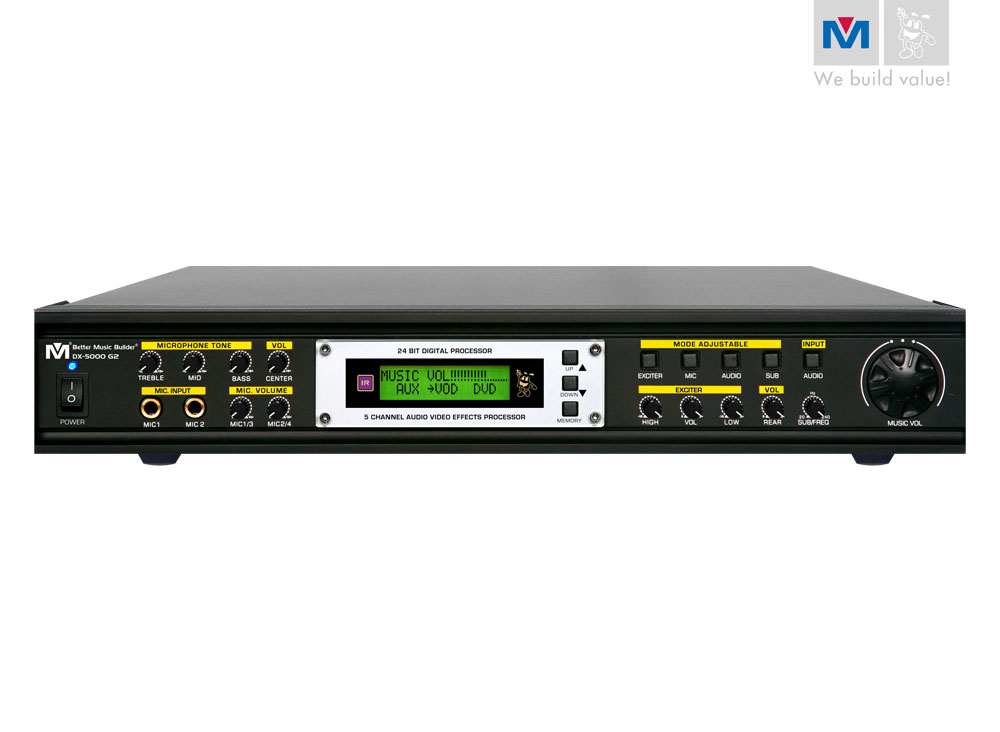

DX-5000 G2 High Quality CPU Mixer (Discontinued)
The new 5000 G2 is a Generation 2 Audio/Video Effects Processor from Better Music Builder. Built based on our observations and proven design of karaoke equipment improving audio technologies to satisfy the specific needs of consumers.
DX-5000 G2 is designed to be an individual Audio/Video Effects Processor (mixer) with more advanced features compared to a mixing amplifier with limited features. It has an easy to use echo effect processor and key control in contrast to a complicated DJ mixer. The DX-5000 G2 is designed to be simple to use by non-professionals while not lacking in any advance functions. These features are an improvement upon their predecessors, DX-5000. The updated control panel on DX-5000 G2 includes more effects functions and an improved LCD monitor. The DX-5000 G2 mixer has 5-channel suitable for home, PA, church, school, company conference, and café.
DX-5000 G2 is designed for more dynamic connections than DX-3000 G2. It has 5-Channel stereo output to provide you with more complex hook-ups, yet without need for more pre-amps, providing you with the performance you need for bigger events.
It is simply the best solution for home and professional karaoke performance.
| MSRP | $699.00 USD |
| Shipping Weight | 15 LBS |
| User Manual | Hook Up Diagram | Panel Drawing |
| Installation | Brochure | Parts & Accessories |
Features
- 5-Channel speaker mixer
- Built-In software programming with RS-232 connector to allow an external computer to operate easily.
- Special mic effect adjustments: Delay, Repeat, and Echo
- Three preset mic effects
- Four independent mic inputs
- Mic exciter with own adjustments
- Allows for both bypassing and non-bypassing XLR balanced paths audio signals
- Professional stereo digital tone modification for more natural sound
- Built-in crossover circuit, independent bass signal output
- Parameter saved automatically, settings are stored when machine is reset
- Smart Audio Input Select (SAIS)
Tech Specs

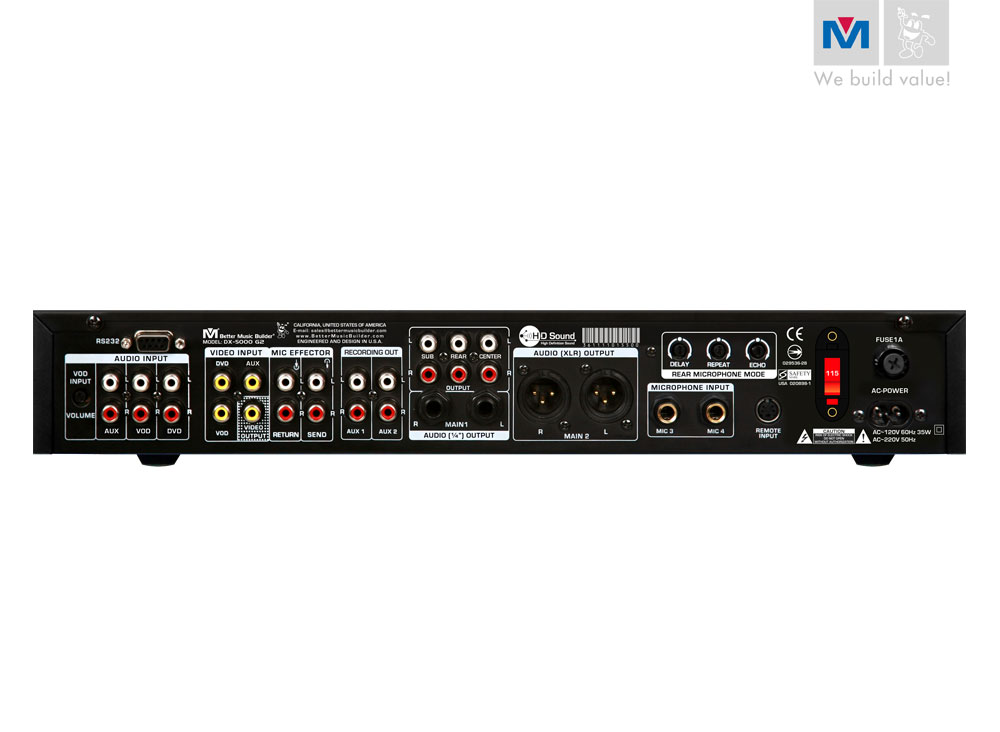

- Source Input: DVD, VOD, AUX
- Microphone Input: 4 (Front x 2, Rear x 2)
- Video Inputs: 3 (RCA jacks)
- Video Outputs: 1 (RCA jack)
- Audio Inputs: 3 (RCA jacks)
- Audio Outputs: 2 (1/4 port x1, XLR balanced x1)
- MUSIC INPUT SECTION:
- Input Impedance: 47kΩ
- Sensitivity: 100~500mVrms
- Overload Electrical Power: 2Vrms
- Equalize Control by CPU: LF:100Hz@±5dB / MF:1kHz@±5dB / HF:10kHz@±5dB
- Frequency Response: 20Hz~20kHz ±2dB
- THD: <0.01%@1kHz
- S/N Ratio: >90dB
- MIC. INPUT SECTION:
- Input Impedance: 4.7kΩ
- Sensitivity: 100~500mVrms
- Overload Electrical Power: 200mVrms
- Equalize Control by CPU: LF:100Hz@±5dB / MF:1kHz@±5dB / HF:10kHz@±5dB
- Frequency Response: 50Hz~20kHz ±2B
- THD: <0.04%@1kHz
- S/N Ratio: >90dB
- Power Requirement: ~120V 60Hz

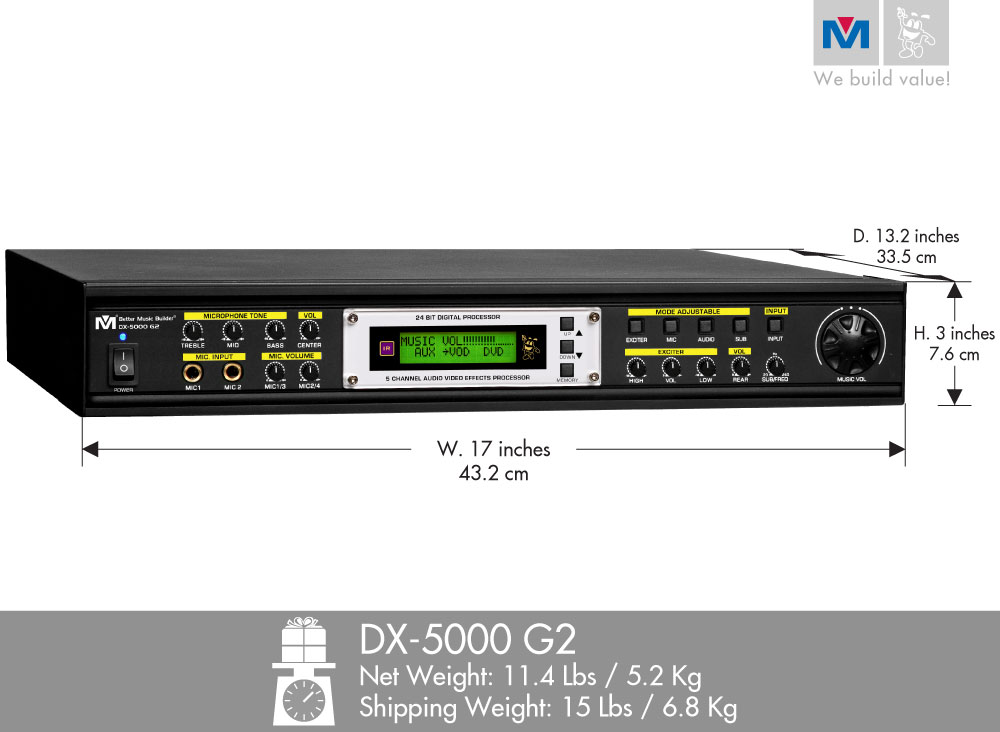

- Dimensions (WxHxD): 17×3×13.2 in / 43.2×7.6×33.5 cm
- Net Weight: 11.4 Lbs / 5.2 Kg
- Shipping Weight: 15 Lbs / 6.8 Kg
- UPC Code: 743062980476
