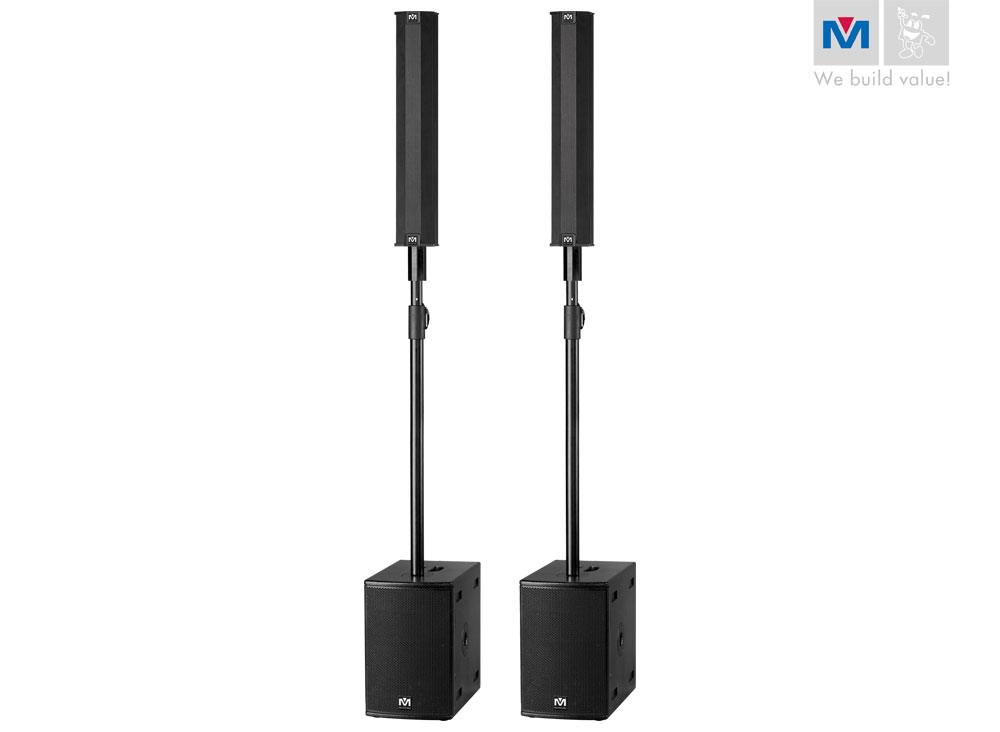

M-L4 Line Array Loudspeaker

M-L4-1

This is a new model home fusion loudspeaker sound system from Better Music Builder. Our engineering team designed the speaker using concepts inspired by professional line array loudspeaker system that’s made up of a number of identical loudspeakers mounted in a line. We used this concept to create a dynamic speaker that’s a perfect fit for live home usage.

MSRP$2,500.00 USD

Tech Specs

  • 2 x FULL RANGE COLUMN SPEAKER WITH ALUMINIUM CABINET
    • Component: 4 x 3” full range and 2 x 3” high range
    • Nominal Impedance: 5Ω
    • RMS Power Handling: 180W
    • Peak Power Handling: 360W
    • Frequency Response: 100Hz~20KHz
    • Sensitivity (1W/1M): 96dB
    • Max. SPL: 122dB
    • Dimensions (WxHxD): 4.1 x 23.3 x 4.5 inches
    • Packing Dimensions (WxHxD): 7.9 x 32.7 x 12.6 inches (pair)
    • Net Weight: 22.9 Lbs / 10.4 Kg (pair)
    • Shipping Weight: 27.3 Lbs / 12.4 Kg (pair)



  • 1 x NON-POWERED SUBWOOFER
    • Component: 2 x 6.5”
    • Nominal Impedance: 4Ω
    • RMS Power Handling: 150W
    • Peak Power Handling: 300W
    • Frequency Response: 42Hz~300Hz
    • Sensitivity (1W/1M): 90dB
    • Dispersion: N/A
    • Dimensions (WxHxD): 10.4 x 16.1 x 18.7 inches
    • Packing Dimensions (WxHxD): 14 x 19.5 x 21.9 inches (each)
    • Net Weight: 25.4 Lbs / 11.5 Kg (each)
    • Shipping Weight: 30 Lbs / 13.5 Kg (each)



  • 1 x POWERED SUBWOOFER
    • Component: 2 x 6.5”
    • Nominal Impedance: 4Ω
    • RMS Power Handling: 150W
    • Peak Power Handling: 300W
    • Frequency Response: 42Hz~300Hz
    • Sensitivity (1W/1M): 90dB
    • Max. SPL: 108dB
    • AMP Output: 900W + 2 x 350W
    • 3 channels digital amp module inside
    • 2 in 4 outs DSP module
    • Dispersion: N/A
    • Dimensions (WxHxD): 10.4 x 16.1 x 18.7 inches
    • Packing Dimensions (WxHxD): 14 x 19.5 x 21.9 inches (each)
    • Net Weight: 37.5 Lbs / 17 Kg (each)
    • Shipping Weight: 41.9 Lbs / 19 Kg (each)



  • 2 x COLUMN SPEAKER STAND WITH BASE
  • 3 x SPEAKER CABLES
