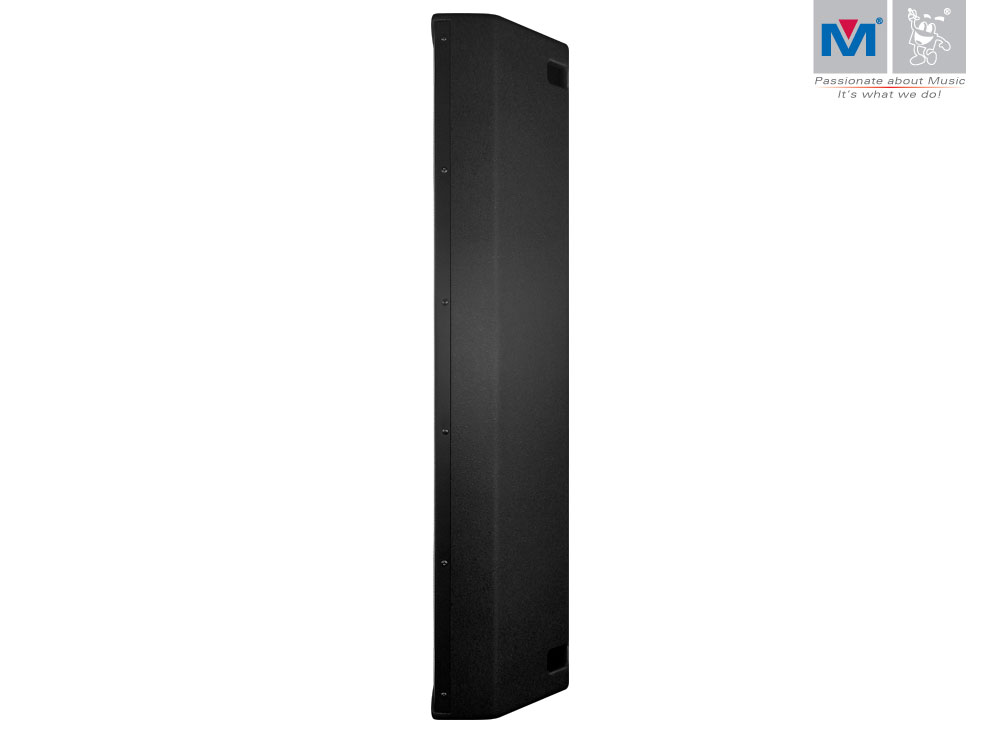

DFS-506 Vocal / Column Speaker 400 Watts (Single)

DFS-506-1_

In the past Better Music Builder has provided the DFS-306 for center vocal monitor and DFS-206 for vocal monitor backup. Although the previous models where a great success, our loyal customers are ready for more enhanced vocal monitor speakers.

In order to accommodate those needs, Better Music Builder engineering team has created the new DFS-406 and DFS-506 vocal/column speakers that provide much more sound coverage. Specialized for home live sound or karaoke singing, the DFS-406 and DFS-506 are equipped with better high and mid range frequencies speakers.

When paired with a subwoofer like our DFS-112 SUB, an entirely new and complete system can be made, making a powerful karaoke system for your living room.

MSRP$506.00 USD
Weight41.9 LBS
User Manual Hook Up Diagram Panel Drawing
Installation Brochure Parts & Accessories







Features

  • 3-Way full range speaker
  • 2 x 6” woofers [low frequency]
  • 1 x 6” tweeter [middle frequency]
  • 2 x 1” compression driver (tweeters [high frequency]) with PEI diaphragm
  • Dynamic Fusion Technology™ (DFT)
  • High SPL and sensitivity
  • Passive configuration
  • 140° x 140° wide angle coverage pattern
  • Max power handling: 400 Watts
  • Frequency response 80Hz ~ 20kHz
  • Sensitivity 94dB
  • 1 x NL4 connector (included in package)
  • Computer stimulation design technology ensures good frequency response and excellent phase feature
  • Speaker Stand Adapter Bracket is included in package
  • Powder coated grill

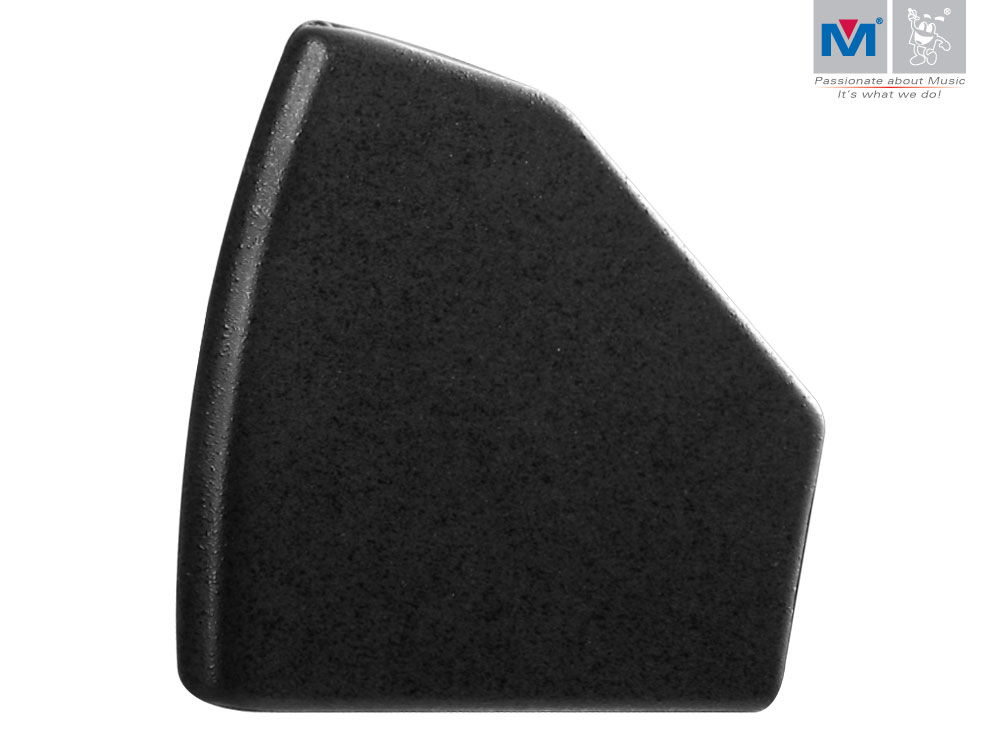

  • Durable polyurethane textured base paint
  • Suitable for all kind of rock bar, entertainment bar, night club, and live performances
  • Flexible and easy-to install configurations (wall, ceiling, under balcony)



Tech Specs

  • Peak Power: 400 Watts
  • RMS Power: 200 Watts
  • Cabinet Type: MDF Wood
  • Supported Fixture: Wall Mount, Floor Stand
  • Woofer [Low Frequency]: 6” (2 units)
  • Tweeter [Middle Frequency]: 6” (1 unit)
  • Tweeter [High Frequency]: 1” compression driver (2 units)
  • Rated Impedance: 8 ohms
  • Frequency Response: 70Hz ~ 20kHz (±3dB)
  • Sensitivity: 95 dB/1W/1M
  • Crossover Frequency: Low/Mid:1.25KHz; Mid/Hi:6KHz
  • Dimensions (WxHxD): 8.3 x 35.8 x 7.6 in / 21.2 x 91 x 19.4 cm
  • Packing Dimensions (WxHxD): 12.4 x 37.8 x 11.6 in / 31.5 x 96 x 29.5 cm
  • Net Weight: 35.3 Lbs / 16 Kg
  • Shipping Weight: 41.9 Lbs / 19 Kg
  • UPC Code: 743062980957
