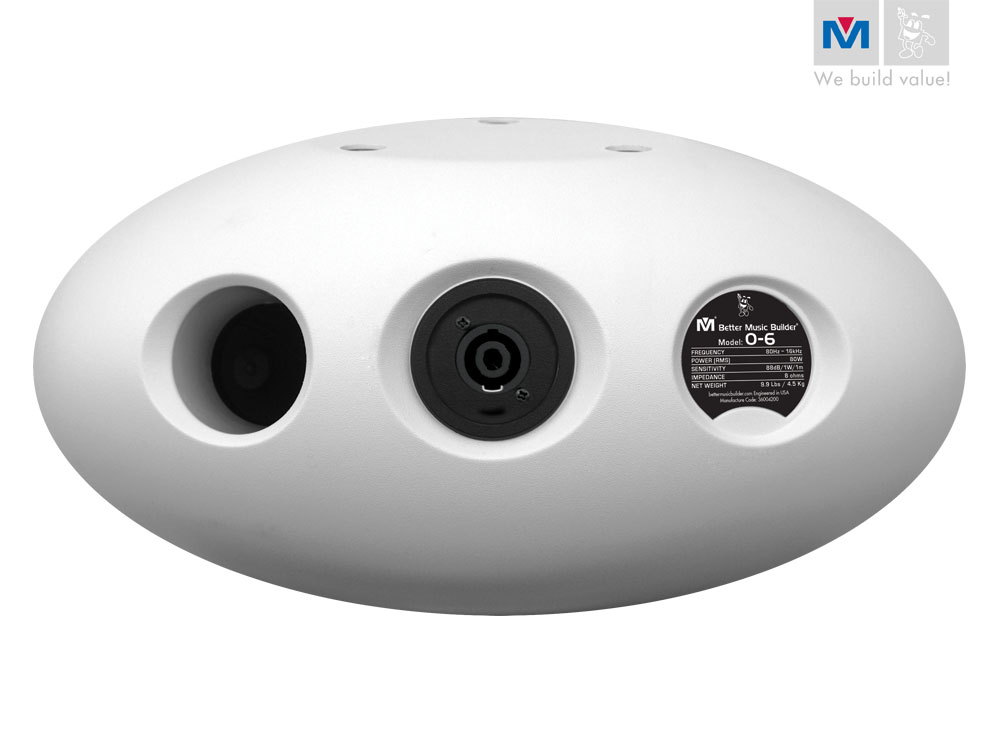

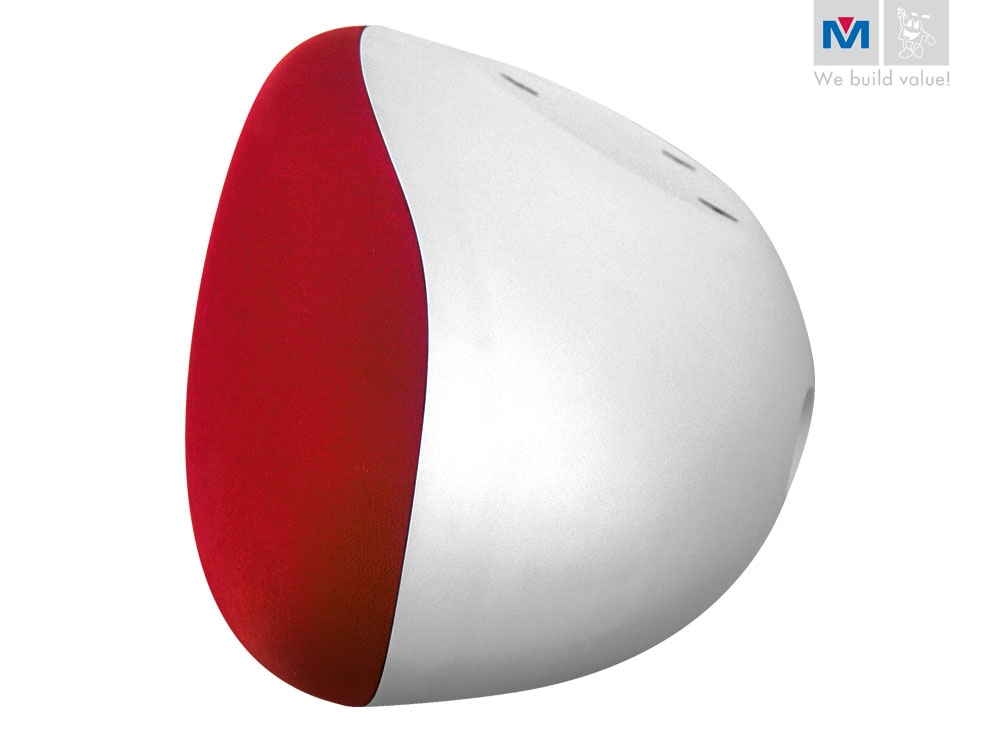

O-6 2-Way Full Range Speaker 320 Watts (Oval Series) Pair
Better Music Builder is proud to introduce a high-end Oval Series speaker line to the consumers in North America. This Oval Series speaker has two models (one with 6-inch woofer and the other with 10-inch woofer) in compact size with fashionable appearance and excellent vocal sound for singing. They are suitable for commercial use especially for classy nightclubs and bars.
The Oval Series speaker is also good for home entertainment. They work perfectly with both 3-channel and 5-channel amplifiers for both karaoke singing and home theater. Better Music Builder provides with you with high quality 3 and 5-channel amplifiers DX-222 G2 and DX-288 G2 (Generation Two) to match this Oval Series speakers.
The Oval Series is 2-way full range speaker system (both 6-inch O-6 Speaker and 10-inchn O-10 Speaker) with wide dispersion. Its sound is natural and clear while the cabinet is handy and compact with fashionable appearance. I It can be applicable in both small and medium sound format.
The Oval Series adopts two 3-inch new paper cone high frequency speakers which greatly enhance the performance and power loading capacity in the both mid and high frequencies. Both O-6 and O-10 speaker optimized the low frequency driver that can realize highest clearance and lowest distortion in high sound pressure. The 12 dB attenuation slope cross frequency circuit enables smooth frequency response. And the full range circuit protecting system provides higher security.
The cabinet is injection molded with high intensity polypropylene. The delicate designed shape provides best structure strength and acoustic characteristics. There are four colors for the grill of the O-6 and O-10: red, silver, black and brown for your choice.
| MSRP | $500.00 USD |
| Shipping Weight | 11.0 LBS |
| User Manual | Hook Up Diagram | Panel Drawing |
| Installation | Brochure | Parts & Accessories |
Features
- 2×3” tweeters [paper cone mid-high frequency drivers]
- 1×6” woofer [low frequency woofer]
- RMS 80W, peak 320W
- High intensity injection moulding cabinet
- Dispersion 140° x 160°
- Frequency response 80Hz~16kHz (-3dB)
- Sensitivity 88dB, Max SPL 120 dB
- Round hanging cover: Three 8mm screws size
- The cabinet is made from high intensity PP, the color for cabinet and grill are various options (Red / Silver / Black / Brown).
Tech Specs
- Type: Front (2-Way Full Range)
- Max. Power Handling: 320 Watts
- Cabinet Type: Polypropylene Injection Moulding
- Supported Fixture: Ceiling Mount, Wall Mount, Floor Stand
- Woofer: 6 inches (1 unit)
- Tweeter: 3 inches (2 unit)
- “Spot” Range: Compression Driver
- Rated Impedance: 8 ohms
- Frequency Response: 80Hz ~ 16kHz
- Sensitivity: 88 dB
- Crossover Frequency: 2.5 kHz
- Dimension (WxHxD): 15.7×9×9.4 in / 40×23×24 cm
- Packing Dimension (WxHxD): 17.8×10.6×12.2 in / 45.2×27×31 cm (each)
- Net Weight: 9.9 Lbs / 4.5 Kg (each)
- Shipping Weight: 11 Lbs / 5 Kg (each)
- UPC Code: 743062980391
